Guide: Extending mizer

Source: vignettes/guide-extend-mizer.qmd

This guide covers the mechanisms for customising mizer’s dynamics without editing the package source, from external encounter and mortality through to whole new ecosystem components, with worked examples of each. To package an extension up for others to use, see the guide to creating a mizer extension package.

This is for changing how mizer works without editing the package source. Pick the lightest mechanism that expresses your change, and reach for a heavier one only when the lighter one cannot do the job. All setters return a new MizerParams — reassign the result.

Goal Use
Add a fixed external food or mortality source (no new state variable) ext_encounter() / ext_mort()
Add an extra encounter or mortality that depends on the model state but has no state of its own other_encounter() / other_mort()
Change how one built-in rate is calculated setRateFunction()
Add a new dynamical pool (detritus, carrion, oxygen, second resource…) setComponent()
Store parameters for your custom code other_params() (model-wide) or component_params (one component)
Extend plots/summaries for a custom model type S3 methods on an S3 extension class
Replace arbitrary internal mizer code (last resort) customFunction()

If you only need to change one rate, prefer setRateFunction() over replacing mizerRates() or patching internal functions. If you only need to change a number the rates are computed from, you do not need this skill at all — see the guide to changing model parameters.

External encounter and mortality (lightest)

For a background process that affects fish but needs no state of its own. Both are species × size arrays: ext_encounter (mass/year, added to getEncounter()) and ext_mort (1/year, added to mortality).

ext_mort(params) <- my_mort_array        # e.g. outside predators
ext_encounter(params) <- my_food_array   # extra unmodelled food

Build the array from the model’s own grid rather than from literal dimensions, so its shape and dimnames come out right, and add to what is already there rather than overwriting it. An extra food source scaling allometrically with body size:

params_ext <- NS_params
extra_food <- outer(rep(0.1, nrow(species_params(params_ext))),
                    w(params_ext)^(3/4))
ext_encounter(params_ext) <- ext_encounter(params_ext) + extra_food

This is the right choice when the extra process is not itself depleted or replenished, and the fish do not feed back on it. If it needs to respond to the fish, you need a component instead.

External encounter changes the realised encounter and feeding level, but it does not enter the power-law reference state used by get_gamma_default() and get_f0_default(). Those defaults likewise exclude functions registered with other_encounter(), including a component’s encounter_fun: they describe feeding on the reference resource alone, before extra food sources are added.

Replacing a rate function

Use when the model still follows mizer’s standard flow but one step should be computed differently — a time-dependent encounter, an alternative growth or recruitment formulation, and so on. Mizer stores the function name, so the function must be findable by name in the global environment or an installed package; a function defined inside another function cannot be found.

params <- setRateFunction(params, "Mort", "myMort")
getRateFunction(params)      # list the current rate functions

Replaceable rates include Rates, Encounter, FeedingLevel, PredRate, PredMort, Mort, ResourceMort, EReproAndGrowth, ERepro, EGrowth, Diffusion, FMort, RDI (density-independent recruitment), and RDD (density-dependent recruitment). Resource dynamics is set separately via resource_dynamics().

Write your function by starting from the built-in (mizerMort(), mizerEncounter(), …): copy it, change what you need, and keep the same signature and return dimensions/dimnames. Custom rate functions receive params, the current state (n, n_pp, n_other), t, and previously computed rates via ... — accept ... and pull what you need from it.

# Add a size-independent extra mortality, its size stored in other_params
myMort <- function(params, n, n_pp, n_other, t, f_mort, pred_mort, ...) {
    base <- mizerMort(params, n, n_pp, n_other, t, f_mort, pred_mort, ...)
    base + other_params(params)$extra_mort  # a scalar or species × size array
}
other_params(params)$extra_mort <- 0.1     # store the parameter
params <- setRateFunction(params, "Mort", "myMort")

Time-dependent rates are the key reason to reach for setRateFunction(). Species parameters and rate arrays are fixed for the whole simulation, but a rate function receives the current time t and can therefore change as the run proceeds — seasonal forcing, a warming trend, a management measure that switches on in a given year. Wrap the built-in and scale its result by t:

seasonalMort <- function(params, t, ...) {
    mizerMort(params, t = t, ...) * (1 + 0.3 * sin(2 * pi * t))   # t in years
}
params <- setRateFunction(params, "Mort", "seasonalMort")

Under the second-order time steppers your function is evaluated a second time within each step, at t + dt and on a predicted state, so write it as a function of the t it is given: one that assumes time advances once per call, or caches the last t it saw, gives a different trajectory under project(method = "second_order") than under the default.

Never let a rate jump as a function of abundance. Depending on t or w discontinuously is fine; depending on n, n_pp or n_other discontinuously is not. Mizer’s time steppers freeze the rates during each density update, so they cannot see a threshold being crossed within a step. A rule like if (biomass < threshold) effort <- 0 gives a trajectory that keeps changing as dt is refined, makes solver = "newton" stall, and makes getStability() return a confident but meaningless answer — with no warning from mizer. Choosing method = "tr_bdf2" does not help. Give the switch a finite width instead:

# Bad: jumps. Good: ramps linearly between two thresholds.
frac <- (biomass - b_lim) / (b_trigger - b_lim)
effort <- effort * min(1, max(0, frac))

max()/min() kinks are continuous and much less troublesome — they cost some accuracy, not correctness. See the Discontinuous rate functions article.

Signatures and return shapes

Each replaceable rate has its own signature and its own expected return shape. setRateFunction() calls your function with test inputs at registration and checks the dimensions, so a mistake here surfaces immediately rather than mid-projection.

Rate Signature Return value
Encounter function(params, n, n_pp, n_other, t, ...) numeric matrix, species × size
FeedingLevel function(params, n, n_pp, n_other, t, encounter, ...) numeric matrix, species × size
EReproAndGrowth function(params, n, n_pp, n_other, t, encounter, feeding_level, ...) numeric matrix, species × size
ERepro function(params, n, n_pp, n_other, t, e, ...) numeric matrix, species × size
EGrowth function(params, n, n_pp, n_other, t, e_repro, e, ...) numeric matrix, species × size
PredRate function(params, n, n_pp, n_other, t, feeding_level, ...) numeric matrix, species × full size grid
PredMort function(params, n, n_pp, n_other, t, pred_rate, ...) numeric matrix, species × size
FMort function(params, n, n_pp, n_other, t, effort, e_growth, pred_mort, ...) numeric matrix, species × size
Mort function(params, n, n_pp, n_other, t, f_mort, pred_mort, ...) numeric matrix, species × size
RDI function(params, n, n_pp, n_other, t, e_growth, mort, e_repro, diffusion, ...) numeric vector, one value per species
RDD function(rdi, species_params, params, t, ...) numeric vector, one value per species
ResourceMort function(params, n, n_pp, n_other, t, pred_rate, ...) numeric vector, one value per full size bin
Diffusion function(params, n, n_pp, n_other, t, feeding_level, ...) numeric matrix, species × size
Rates function(params, n, n_pp, n_other, t, effort, rates_fns, ...) named list with all standard rate components

Three rules that follow from the table:

  • Return plain numeric objects. Never return an ArraySpeciesBySize or ArrayTimeBySpecies from a function registered with setRateFunction(); the get…() wrappers add those classes afterwards where they belong.
  • Most size-resolved rates match initialN(params) in both dimensions and dimnames. The exceptions are PredRate, which is on the full prey grid (w_full), and ResourceMort, which is one value per w_full bin rather than one per species.
  • Build outputs from existing mizer arrays so dimensions and dimnames are inherited. Most bugs in extension code are the right numbers in the wrong shape.

Respecting the model’s quadrature scheme

A model may be on either of two quadrature schemes, selected by the bin_average entry of second_order_w() (see the guide to running a mizer simulation). Code that ignores this looks correct and passes its tests, because the default is the first-order scheme — and is then silently wrong by around 10% for anyone who has switched the second-order scheme on. Three rules:

  • Build derived quantities from the rate functions, don’t re-derive them. getEncounter(), getFeedingLevel(), getPredRate(), getEGrowth() already carry the right quadrature for whichever scheme the model is on. Re-deriving a rate from the species parameters is how this goes wrong.
  • To go inside the encounter convolution, use encounter_kernel(), not pred_kernel(). pred_kernel() returns the kernel point-sampled on the grid — right for plotting, and the form in which you supply a custom kernel, but not the bin-integrated coefficients the convolution consumes. Pair encounter_kernel() with the plain point prey weight w_full(params) * dw_full(params), which is a normalisation the kernel is built to cancel, so it must not itself be bin-averaged.
  • If your setter precomputes an array from a size-dependent parameter, gate it on params@second_order_w[["bin_average"]] the way setExtMort() and setResource() do, and do the integral once at setup so projection cost is unchanged.

For a summary-style integral \(\int N_i(w) K_i(w) dw\), do not write the sum at all: sizeIntegral(params, weighting = K, min_w = ..., max_w = ...) does the integral under whichever scheme the model is on and wraps the result — see “Writing your own indicator” in the guide to analysing and plotting mizer results. If you need the gating on its own, for a weight you are not integrating, that is bin_average_weight(K, params). Test any new integral with the flag on as well as off; a test on the default path alone proves nothing.

Adding a component

Use setComponent() for a new dynamical quantity — any R object: a scalar, a vector on the size grid, or a list. A component may contribute in up to three ways:

  • dynamics_fun — updates the component’s own state during projection,
  • encounter_fun — adds to getEncounter(),
  • mort_fun — adds to getMort().
params <- setComponent(
    params, "detritus",
    initial_value    = 1e5,
    dynamics_fun     = "detritus_dynamics",
    encounter_fun    = "detritus_encounter",  # optional
    component_params = list(rho = 0.1)
)

Access components with getComponent(), remove them with removeComponent(). Component state is available to all custom functions as n_other[["detritus"]], and its parameters via component_params.

If there is nothing for dynamics_fun to update — a starvation or senescence mortality reads the state but keeps none of its own — do not invent a component for it. Register the function on its own instead:

other_mort(params)[["starvation"]] <- "starvMort"
other_encounter(params)[["scavenging"]] <- "scavengingEncounter"

getMort() and getEncounter() add the result of every function registered this way, exactly as they do for a component’s mort_fun and encounter_fun. The two registries do not overlap: an entry that belongs to a component is owned by setComponent(), reported by getComponent() and removed by removeComponent(), and other_mort() deliberately does not list it — the same split other_params() makes for component parameters. Assigning NULL removes a free-standing entry.

The functions named in that call take the component’s name as a component argument, so one implementation can serve several components, and reach their own state as n_other[[component]] and their own parameters as params@other_params[[component]]. A dynamics function additionally receives the current rates and the step length dt, and returns the component’s new state — not a rate of change, so integrate the step yourself. This pair makes a detritus pool that fish eat and that relaxes back towards a capacity:

detritusEncounter <- function(params, n, n_pp, n_other, component, ...) {
    params2 <- params
    # Drop this component before delegating, or mizerEncounter() calls back
    # into this function and recurses.
    params2@other_encounter[[component]] <- NULL
    mizerEncounter(params2, n = n, n_pp = n_other[[component]],
                   n_other = n_other, ...)
}

detritusDynamics <- function(params, n_other, rates, dt, component, ...) {
    detritus <- n_other[[component]]
    p <- params@other_params[[component]]
    interaction <- params@species_params$interaction_resource
    mort <- as.vector(interaction %*% rates$pred_rate)
    target <- p$rate * p$capacity / (p$rate + mort)
    # Exact over the step, so the result does not depend on dt
    target - (target - detritus) * exp(-(p$rate + mort) * dt)
}

Passing the component’s own abundance to mizerEncounter() as n_pp, as detritusEncounter() does, is the trick for making a component act as an extra prey spectrum: it is then eaten through the ordinary predation kernel and shows up in getDiet() without further work.

Components and the time stepper

Under the second-order time steppers — project(method = "second_order"), and the superseded "predictor_corrector", which behaves the same way here — a dynamics_fun is called twice per time step: once as the predictor with the start-of-step rates, and once as the corrector with the midpoint rates, so that the component reaches the same order of accuracy as the spectra. Both calls receive the same t and the same start-of-step state, and only the corrector’s return value survives. The same holds for a custom resource_dynamics function.

The repeated t is deliberate: you are handed the start of the step and its length and asked for the state at the end, so both calls are advancing the same interval and the second one is simply redoing it with better rates. The rate functions, which return an instantaneous rate rather than a step, are the other case and are evaluated at t and then at t + dt.

That makes purity a requirement rather than a matter of taste:

  • Return the new state, computed from the state you were handed. Anything that instead accumulates into a store outside the function — <<-, writing into other_params(params), a running total, a log file — happens twice per step and comes out wrong by a factor of two, while looking correct under the default "euler".
  • Take the rates from the rates argument. Recomputing them from n hands the corrector the start-of-step rates a second time, which quietly drops the run back to first order rather than failing.

detritusDynamics() above satisfies both: it reads the pool out of n_other and the predation rate out of rates, and returns the new pool size.

What the corrector buys you is part of the coupling to the rest of the model, and it is worth knowing exactly how much: five entries of the rate list are replaced by their midpoint values — e_growth, mort, diffusion, rdd and resource_mort, the ones the consumer and resource steppers consume. Every other entry, encounter, feeding_level, pred_rate, pred_mort, f_mort, e and rdi among them, is still the start-of-step value in the corrector call. A component coupling through one of those — detritusDynamics() above reads rates$pred_rate — is first order in that coupling however carefully it integrates, and on NS_params a single dt = 0.1 step moves pred_rate by nearly 30%. Prefer a coupling through the five averaged rates where the choice is yours.

The rest of the step is yours, because the interface asks for the new state rather than for a rate of change — mizer never evaluates your right-hand side and so cannot integrate it for you. A component written as state + dt * f(state, rates) is therefore first order even under "second_order", however good the rates are. Two ways to be second order, both using the rates frozen at the values you were given:

  • Solve the step exactly. For a relaxation towards a target — much the commonest shape — this is the one-liner detritusDynamics() uses above, and mizer’s own resource_semichemostat() is the same pattern. Exact for frozen coefficients, so the only error left is the O(dt^2) in the rates themselves, and it is unconditionally stable into the bargain.
  • Take an RK2 step inside your function: y + dt * f(y + dt / 2 * f(y)). General, and enough for anything non-linear.

Explicit time dependence of your own goes the same way, since t is the start of the step in both calls: integrate the forcing across the step or evaluate it at t + dt / 2. None of this gains anything under the default "euler", where the rates are the start-of-step ones and the step is first order whatever you do inside, but neither does it cost anything there.

Test any new component under method = "second_order" as well as the default; halving dt should then move the answer by roughly a quarter rather than a half.

Components and the steady state

A component you give a dynamics_fun is outside mizer’s steady-state machinery, in both directions, and a model with one needs checking accordingly:

  • tuneSteadyState(), findSteadyState(solver = "newton") and getStability() hold the component at its stored value and solve the consumer-resource subsystem around it. Mizer warns when it meets a component with dynamics of its own.
  • isSteady(), the summary() drift line and project(check_steady = TRUE) judge that same subsystem. A component’s state can be any object at all, so mizer cannot form a biomass for it and does not fold its rate of change into the number. A model can be isSteady() while your component is moving.

Mizer names any component that is moving whenever it reports on the drift, and attr(getSteadyResidual(params), "other") holds the per-cell relative rates of change it measured, reduced by max(abs(...)) for reporting — an overestimate whenever the component has fast cells holding almost nothing, which is why that number is reported rather than compared against a tolerance.

To settle a component along with everything else, use projectUntilSettled(), which advances it like every other state variable; its stopping rule does wait for the component. Issue #589 tracks giving components a way to declare their own reduction and so re-enter the criterion.

Worked example: external encounter and mortality

The extra_food built above adds straight to the total encounter rate:

enc_base <- getEncounter(NS_params)
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.
enc_ext <- getEncounter(params_ext)
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.
range(enc_ext - enc_base, na.rm = TRUE)
[1] 5.623413e-04 2.820537e+02

External mortality works the same way — note the negative exponent, since mortality falls with size where the extra food rose with it:

params_mort <- NS_params
extra_mort <- outer(rep(0.05, nrow(species_params(params_mort))),
                    w(params_mort)^(-1/4))
ext_mort(params_mort) <- ext_mort(params_mort) + extra_mort

Worked example: a seasonal encounter rate

Wrapping a built-in rate, in full. This one takes the amplitude and period of a seasonal cycle from other_params():

params <- NS_params
other_params(params) <- list(season_amplitude = 0.2, season_period = 1)
seasonalEncounter <- function(params, n, n_pp, n_other, t, ...) {
    p <- other_params(params)
    multiplier <- 1 + p$season_amplitude * sin(2 * pi * t / p$season_period)
    multiplier * mizerEncounter(params, n = n, n_pp = n_pp, n_other = n_other,
                                t = t, ...)
}

Registered by name, the rate now moves with t:

params2 <- setRateFunction(params, "Encounter", "seasonalEncounter")
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.
enc0 <- getEncounter(params2, t = 0)
enc_quarter <- getEncounter(params2, t = 0.25)
range(enc_quarter / enc0, na.rm = TRUE)
[1] 1.2 1.2

At t = 0.25 the multiplier is at its maximum, 1 + season_amplitude, exactly as intended. The seasonality then carries through a projection:

sim <- project(params2, t_max = 2, t_save = 0.1)

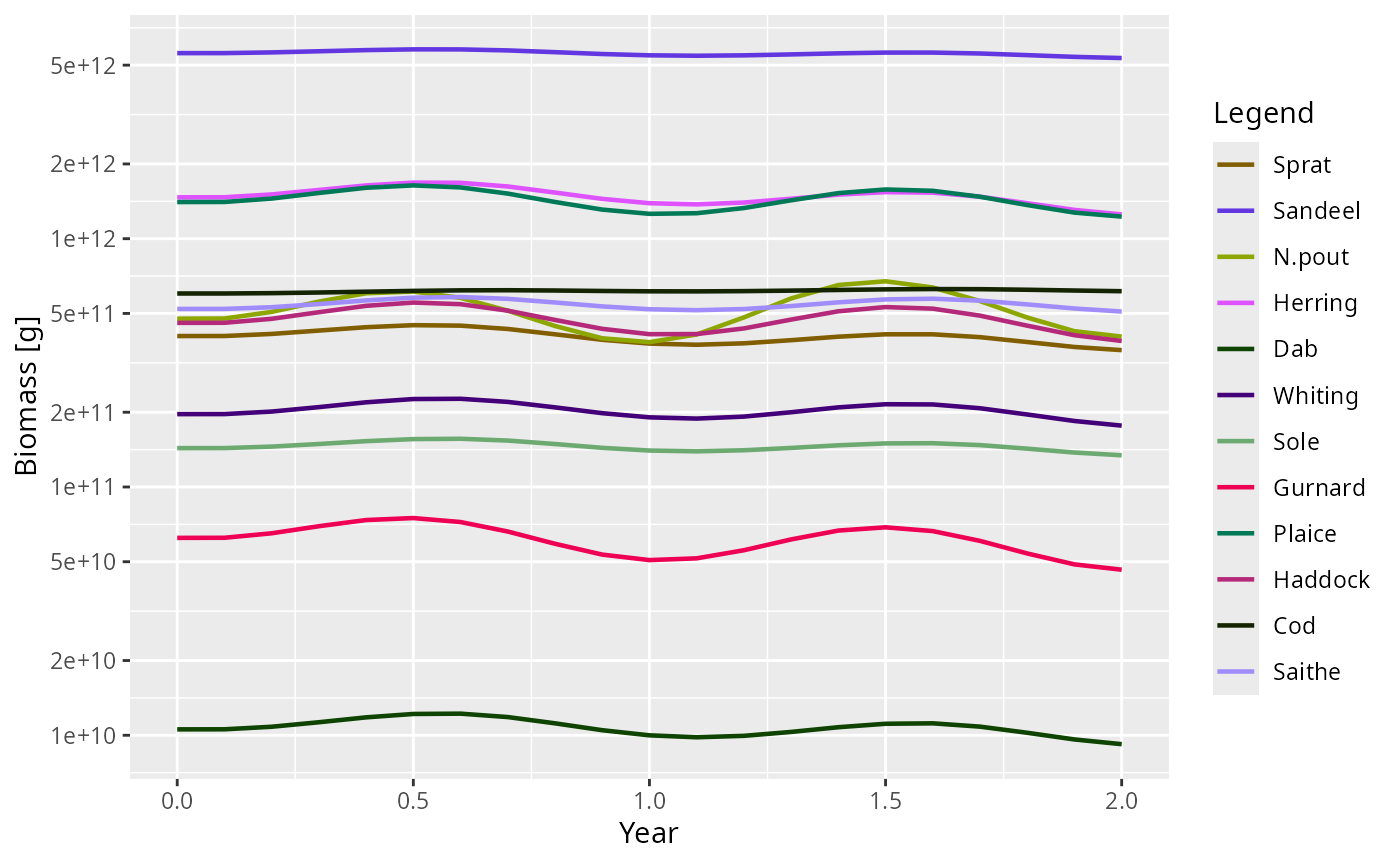

plotBiomass(sim)

A good first test for such a function checks that at t = 0 it agrees with mizerEncounter(), that at t = 0.25 it is scaled by 1 + season_amplitude, and that its result has the same dimensions and dimnames as initialN(params).

Worked example: a detritus-like component

Putting detritusEncounter() and detritusDynamics() from above to work. The component is stored on the full resource size grid, and starts at half the capacity it relaxes towards:

detritus_params <- list(capacity = initialNResource(params),
                        rate = params@rr_pp)
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.
params3 <- setComponent(
    params,
    component = "Detritus",
    initial_value = initialNResource(params) / 2,
    dynamics_fun = "detritusDynamics",
    encounter_fun = "detritusEncounter",
    component_params = detritus_params,
    colour = "orange"
)
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.

Its initial state is now in initialNOther(params3)$Detritus and its settings in getComponent(params3, "Detritus"). Because it is eaten through the ordinary predation kernel, it appears in the diet with no further work:

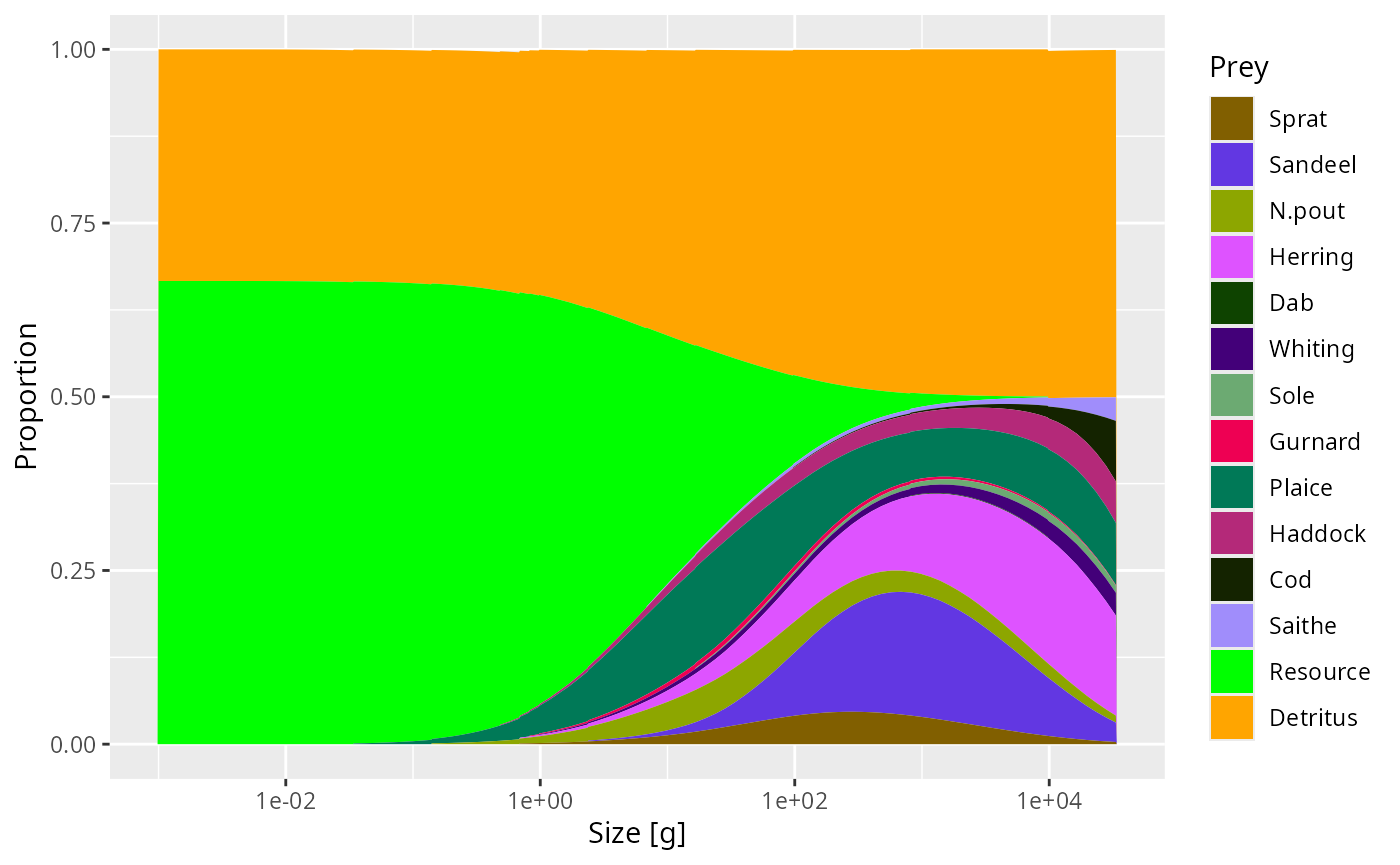

plotDiet(params3, species = "Cod")
ℹ No `a` column so using a = 0.01 in w = a l^b, with w in g and l in cm.
ℹ No `b` column so using the isometric default b = 3 in w = a l^b.

To let the component kill fish as well as feed them, give setComponent() a mort_fun too.

Extending plots and summaries: S3 methods on an S3 extension class

This is the most flexible route that still works with mizer’s public generics. MizerParams and MizerSim are S3 classes, and an extension package defines S3 methods for its own extension class — getBiomass.MyMizerSim(), plotBiomass.MyMizerSim(), summary.MyMizerParams() — which is what makes a summary or plot account for components the extension added. Every such method must call NextMethod(), so that several extensions loaded at once compose instead of overwriting each other.

Writing that package — the extension class, recording with recordExtension() and the methods — is the subject of the guide to creating a mizer extension package, and the order the methods then run in is the subject of the guide to using mizer extension packages.

Storing parameters

  • other_params(params)$foo <- value — model-wide parameters your custom functions can read.
  • component_params (a setComponent() argument) — parameters scoped to one component.

Keeping the two separate is what keeps params@other_params readable when several custom functions are in play.

customFunction() (last resort)

customFunction() replaces an internal mizer function inside the package namespace. Reach for it only after confirming that setRateFunction(), setComponent(), resource_dynamics()<- and setReproduction() cannot express the change: a replacement that is not fully compatible breaks the package, and nothing checks that it is.

Testing and packaging

  • Test both halves: that setRateFunction() or setComponent() succeeds, and that the downstream function you actually care about — getEncounter(), getDiet(), project() — uses your extension as intended.
  • After registering a custom rate, run project() on a short horizon and check the affected get…() output looks right; write a testthat test that compares against a hand-computed value on a small model.
  • If a custom rate depends on the abundances through a threshold, read Discontinuous rate functions before trusting any results.
  • Once an extension is useful in more than one project, or you want to give it to someone else, make it a package: a stable namespace mizer can resolve function names in, somewhere for tests and documentation to live, and a version that gets recorded in the model metadata. Everything that only matters once you share — S3 extension classes, recordExtension(), dispatch via NextMethod(), bundled data objects, reporting through info_level, and upgrading objects saved by an earlier version — is in the guide to creating a mizer extension package. For the other side of it, loading and saving a model that needs an extension package, see the guide to using mizer extension packages.
  • For a larger design, it is worth discussing the interface on the mizer issue tracker before committing to it.
