1 Introduction

setRateFunction() lets you replace any of mizer’s built-in rate functions with one of your own. Sooner or later this tempts you into writing a rate that switches abruptly on the state of the model — a fishery that closes when a stock falls below a limit reference point, a predator that switches diet when its preferred prey becomes scarce, a mortality that kicks in below a critical condition, a species declared extinct below a threshold abundance.

Such a rate is a discontinuous function of the abundances n. This vignette shows what goes wrong when you do that, why none of mizer’s time-stepping methods can rescue you, and how to fix it. The fix is short — round the corner off the switch — so if you only read one section, read Regularise the switch.

The trouble is worth spelling out because it is quiet. Mizer will not warn you, project() will not fail, and the output will look entirely plausible. What you get instead is a trajectory that keeps changing as you refine dt, a steady-state solver that stalls, and a stability diagnostic that reports a confident answer to a question it has not actually asked.

2 A harvest control rule

Take a familiar management measure. A harvest control rule closes the fishery for a stock when its spawning stock biomass (SSB) drops below a limit reference point \(B_{lim}\). We will apply it to North Sea cod, closing the Otter gear that catches it.

First a helper for the SSB of one species, and the two versions of the rule we will compare. getSSB() computes the SSB from the initial state of a params object, or from every saved step of a simulation; a rate function is instead handed the current abundances n directly, so we install them as the initial state and ask getSSB() for the species we want. Going through getSSB() this way, rather than doing the integral by hand, keeps the helper correct whatever second_order_w() setting the model uses.

ssb_of <- function(params, n, species) {
    initialN(params) <- n
    getSSB(params)[[species]]
}

# The hard rule: the fishery is either fully open or fully shut.
hardHCR <- function(params, n, n_pp, n_other, t, effort, ...) {
    op <- other_params(params)
    if (ssb_of(params, n, op$stock) < op$b_lim) {
        effort[op$gear] <- 0
    }
    mizerFMort(params, n, n_pp, n_other, t = t, effort = effort, ...)
}

# The ramped rule: effort increases linearly from zero at B_lim to full at
# B_trigger. This is the shape of an ICES "hockey stick" rule.
rampHCR <- function(params, n, n_pp, n_other, t, effort, ...) {
    op <- other_params(params)
    ssb <- ssb_of(params, n, op$stock)
    frac <- (ssb - op$b_lim) / (op$b_trigger - op$b_lim)
    effort[op$gear] <- effort[op$gear] * min(1, max(0, frac))
    mizerFMort(params, n, n_pp, n_other, t = t, effort = effort, ...)
}

Both are perfectly reasonable things to write. The first is discontinuous in n; the second is continuous. That single difference is what the rest of this vignette is about.

We set up the North Sea model with enough fishing pressure on cod that the stock runs down into the region where the rule bites, and store the rule’s parameters in other_params().

params <- NS_params
initial_effort(params)["Otter"] <- 1.5
ssb0 <- getSSB(params)[["Cod"]]

other_params(params)$stock     <- "Cod"
other_params(params)$gear      <- "Otter"
other_params(params)$b_lim     <- 0.5 * ssb0
other_params(params)$b_trigger <- 0.7 * ssb0

params_hard <- setRateFunction(params, "FMort", "hardHCR")
params_ramp <- setRateFunction(params, "FMort", "rampHCR")

Now run each rule at two time steps that differ by a factor of eight, and track the cod SSB.

ssb_series <- function(p, dt, t_max = 30, method = "tr_bdf2") {
    sim <- project(p, dt = dt, t_max = t_max, t_save = dt, method = method,
                   progress_bar = FALSE)
    ssb <- getSSB(sim)[, "Cod"]
    data.frame(t = as.numeric(names(ssb)), ssb = ssb / ssb0)
}

hard_coarse <- ssb_series(params_hard, dt = 0.1)
hard_fine   <- ssb_series(params_hard, dt = 0.0125)
ramp_coarse <- ssb_series(params_ramp, dt = 0.1)
ramp_fine   <- ssb_series(params_ramp, dt = 0.0125)
par(mfrow = c(1, 2), mar = c(4, 4, 3, 1))

plot(ssb ~ t, data = hard_coarse, type = "l", col = 2, ylim = c(0.45, 1.02),
     xlab = "time (years)", ylab = expression(SSB / SSB[0]),
     main = "Hard switch")
lines(ssb ~ t, data = hard_fine, col = 4)
abline(h = 0.5, lty = 3)
legend("topright", c("dt = 0.1", "dt = 0.0125", expression(B[lim])),
       col = c(2, 4, 1), lty = c(1, 1, 3), bty = "n", cex = 0.8)

plot(ssb ~ t, data = ramp_coarse, type = "l", col = 2, ylim = c(0.45, 1.02),
     xlab = "time (years)", ylab = expression(SSB / SSB[0]),
     main = "Ramped rule")
lines(ssb ~ t, data = ramp_fine, col = 4)
abline(h = 0.5, lty = 3)
legend("topright", c("dt = 0.1", "dt = 0.0125"),
       col = c(2, 4), lty = 1, bty = "n", cex = 0.8)

The two panels tell the whole story. Under the ramped rule the two time steps give the same curve, settling to a well-defined state. Under the hard rule the SSB collapses onto \(B_{lim}\) and then saws up and down against it, and the size of that sawtooth depends on the time step rather than on anything in the model.

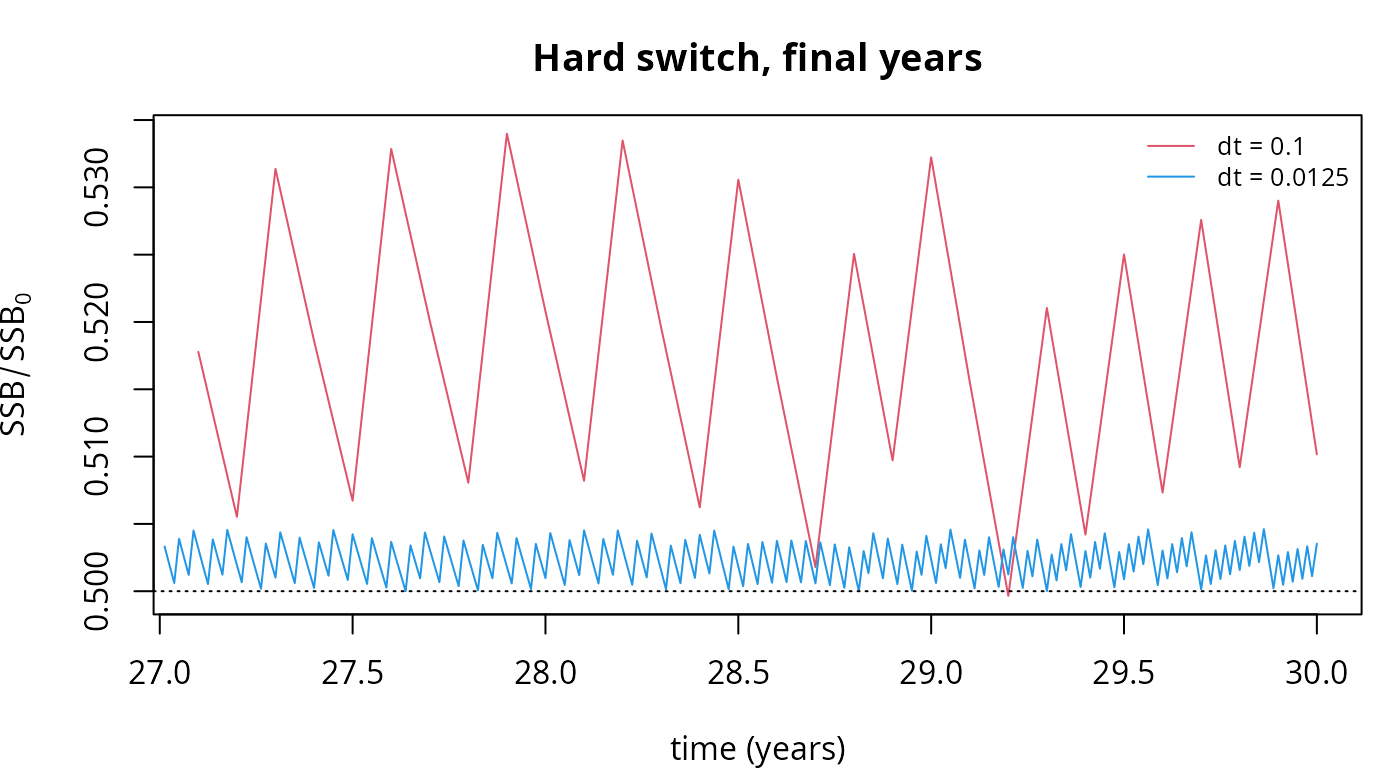

Zooming in on the last few years makes the sawtooth explicit.

par(mar = c(4, 4, 3, 1))
late <- function(d) d[d$t > 27, ]
plot(ssb ~ t, data = late(hard_coarse), type = "l", col = 2,
     xlab = "time (years)", ylab = expression(SSB / SSB[0]),
     main = "Hard switch, final years")
lines(ssb ~ t, data = late(hard_fine), col = 4)
abline(h = 0.5, lty = 3)
legend("topright", c("dt = 0.1", "dt = 0.0125"),
       col = c(2, 4), lty = 1, bty = "n", cex = 0.8)

This is chattering. To see it directly, instrument the rule so that it records every decision it takes, and count them.

tally <- new.env()

tallyHCR <- function(params, n, n_pp, n_other, t, effort, ...) {
    op <- other_params(params)
    closed <- ssb_of(params, n, op$stock) < op$b_lim
    tally$decisions <- c(tally$decisions, closed)
    if (closed) effort[op$gear] <- 0
    mizerFMort(params, n, n_pp, n_other, t = t, effort = effort, ...)
}
params_tally <- setRateFunction(params, "FMort", "tallyHCR")

switching <- function(dt, t_max = 30) {
    tally$decisions <- logical(0)
    project(params_tally, dt = dt, t_max = t_max, t_save = t_max,
            method = "tr_bdf2", progress_bar = FALSE)
    # Discard the first half of the decisions as transient
    d <- tail(tally$decisions, length(tally$decisions) %/% 2)
    c(closed_fraction   = mean(d),
      switches_per_year = sum(diff(d) != 0) / (t_max / 2))
}

dts_sw <- c(0.1, 0.05, 0.0125)
cbind(dt = dts_sw, as.data.frame(t(sapply(dts_sw, switching))))
#>       dt closed_fraction switches_per_year
#> 1 0.1000       0.1966667          7.866667
#> 2 0.0500       0.1883333         15.066667
#> 3 0.0125       0.1816667         58.066667

Two things are happening at once, and it is worth separating them.

The fraction of the time the fishery is closed converges, to about 18%. That number is meaningful: it is the mixture of the two branches that holds the stock on the threshold, the sliding solution in the sense of Filippov. In a limited sense, then, the model does have a well-defined answer.

The rate of switching does not converge. It is proportional to \(1/\Delta t\) — about eight times a year at dt = 0.1, and nearly sixty at dt = 0.0125 — and diverges as \(\Delta t \to 0\). The fishery you have actually simulated is one that opens and closes as fast as your numerical time step allows, which is not a management strategy anyone proposed.

This also explains why the SSB curve above sits just above \(B_{lim}\) rather than crossing it. Because the second-order methods average the start-of-step and predicted end-of-step rates (see the next section), a step on which the two disagree about the threshold is run with a half-open fishery. The scheme is quietly inventing intermediate effort levels that the rule never specified, and how much of that it invents depends on \(\Delta t\). That is the whole of the \(\Delta t\)-dependence in the first figure.

3 Why the time steppers cannot fix this

It is natural to reach for a better time stepper, and mizer offers two beyond the default: method = "predictor_corrector" and the L-stable method = "tr_bdf2". Neither helps, and it is worth understanding why, because the reason says something about how all three methods treat nonlinearity.

Mizer’s density update is semi-implicit: the densities are solved for implicitly, but the rates that make up the transport operator are frozen at values computed from earlier states. The first-order method evaluates the rates once per step, at the start. The two second-order methods evaluate them twice — once at the start of the step and once from a provisional Euler prediction of the end of the step — and then average the two, as described in the numerical scheme vignette. That average is a second-order approximation of the midpoint rate provided the rates vary smoothly along the trajectory.

A discontinuity breaks precisely that proviso. When the threshold is crossed inside a step, the honest step-average of the rate weights the two branches by the fraction of the step actually spent on each side of the threshold. The scheme instead weights them one half and one half, or picks a single branch outright if both of its samples happen to land on the same side. The error it makes on such a step is proportional to the size of the jump, and no amount of cleverness in the linear solve can recover information the rate evaluations never gathered.

L-stability, the property that makes TR-BDF2 damp stiff modes instead of ringing on them, applies to the frozen linear operator. The problematic mode here does not live in that operator; it lives in the rates, which are held constant across the solve. So TR-BDF2 damps nothing.

The numbers bear this out. Measuring the amplitude of the sawtooth over the last third of each run:

amplitude <- function(p, dt, method) {
    s <- ssb_series(p, dt, method = method)
    tail_s <- s$ssb[s$t > max(s$t) * 2 / 3]
    max(tail_s) - min(tail_s)
}

dts <- c(0.1, 0.05, 0.025, 0.0125)
data.frame(
    dt          = dts,
    euler       = sapply(dts, amplitude, p = params_hard, method = "euler"),
    tr_bdf2     = sapply(dts, amplitude, p = params_hard, method = "tr_bdf2"),
    ramp_tr_bdf2 = sapply(dts, amplitude, p = params_ramp, method = "tr_bdf2")
)
#>       dt       euler     tr_bdf2 ramp_tr_bdf2
#> 1 0.1000 0.074939822 0.036850315  0.003076512
#> 2 0.0500 0.038121457 0.018601905  0.003298995
#> 3 0.0250 0.019278516 0.009209786  0.003370588
#> 4 0.0125 0.009904104 0.004620576  0.003391692

Under the hard rule the sawtooth amplitude halves whenever dt halves, for both methods alike. That is first-order convergence. TR-BDF2 achieves a smaller constant — roughly half the amplitude of the Euler method at the same dt — but a better constant is not what a second-order method is for, and the extra order it was supposed to deliver has gone.

Under the ramped rule the amplitude behaves quite differently: it converges, to about 0.0034, instead of shrinking towards zero. That residual variation is a small genuine oscillation of the model, resolved better and better as dt falls, rather than an artefact manufactured by the discretisation. This is the signature to look for. An artefact shrinks with dt; a feature settles down to a value.

So the sliding solution identified earlier is reachable in principle — the SSB does approach \(B_{lim}\) as \(\Delta t \to 0\) — but only at first-order cost, and only for the biomass. The effort never converges at all. You are paying for a very small time step to resolve a switching surface that the model never told you it had.

4 What it does to the steady-state and stability tools

The damage is not confined to project(). Mizer’s steady-state and stability machinery assumes a smooth right-hand side, and a discontinuity undermines it in three different ways.

4.1 steadyNewton() stalls

steadyNewton() solves \(F(N) = 0\) with a Newton-type root finder. A discontinuous rate makes \(F\) discontinuous, and where the equilibrium is a sliding one there is no root at all: neither branch is in equilibrium there. The solver has nothing to converge to.

settle <- function(p) {
    sim <- project(p, dt = 0.01, t_max = 40, t_save = 40, progress_bar = FALSE)
    initialN(p) <- finalN(sim)
    initialNResource(p) <- finalNResource(sim)
    p
}
hard_settled <- settle(params_hard)
ramp_settled <- settle(params_ramp)

ramp_ss <- steadyNewton(ramp_settled)

The ramped model converges without complaint. The hard one does not:

hard_ss <- steadyNewton(hard_settled)
#> Warning: steadyNewton() did not converge (nleqslv termination code 3: No better
#> point found (algorithm has stalled)). Returning the best iterate found.

It returns its best iterate, which sits essentially exactly on the threshold — the sliding surface, where neither branch is in equilibrium and so no root exists:

c(ramp = getSSB(ramp_ss)[["Cod"]] / other_params(params)$b_lim,
  hard = getSSB(hard_ss)[["Cod"]] / other_params(params)$b_lim)
#>      ramp      hard
#> 1.2611480 0.9999867

4.2 getStability() becomes unreliable

getStability() builds its Jacobian by relative finite differences, perturbing each abundance by a fraction h (default \(10^{-4}\)) and differencing. Across a discontinuity that difference quotient is meaningless, and it fails in two distinct ways depending on how close the state sits to the threshold.

When the state sits on the switching surface — which is exactly where a hard rule drives it — some perturbations straddle the threshold and pick up the jump, giving an entry of order (size of jump)/(size of perturbation). The reported spectral radius then depends violently on h:

sapply(c(1e-3, 1e-4, 1e-5),
       function(h) getStability(hard_ss, h = h)$spectral_radius)
#> [1] 17738.045473     1.195768     1.195768

Four orders of magnitude apart. Contrast the ramped model, where the answer is the same to six figures whatever h you choose:

sapply(c(1e-3, 1e-4, 1e-5),
       function(h) getStability(ramp_ss, h = h)$spectral_radius)
#> [1] 2.57496 2.57496 2.57496

What matters here is the reproducibility of that number, not its value. (It exceeds one, so the ramped model’s fixed-reproduction steady state is mildly unstable — which is consistent with the small residual oscillation we measured earlier, and is a real property of this parameterisation rather than anything to do with the switch.) The h-sensitivity is the cheapest diagnostic available: if halving h changes the answer, do not trust the answer.

The second failure mode is quieter and therefore worse. When the state is near but not on the threshold, no perturbation is large enough to cross it, so the Jacobian sees only the branch the state happens to be sitting on. The result is the stability of a smooth system that your model is not:

st <- getStability(hard_settled)
c(spectral_radius = st$spectral_radius, stable = st$stable)
#> spectral_radius          stable
#>       0.9379211       0.0000000

A spectral radius below one, and a confident verdict of stable — for a simulation that we watched chatter for thirty years and will chatter for ever. Nothing here is flagged. The number is the correct linearisation of the open-fishery branch, evaluated at a state that is not an equilibrium of that branch, and it answers a question nobody asked.

5 Regularise the switch

The fix is to make the rate a continuous function of n by giving the switch a finite width. The ramped rule above already does this, and it is worth noticing that it is also the more realistic model: no real fishery flips between fully open and fully shut in response to an infinitesimal change in an estimated biomass, and real harvest control rules are written as ramps for exactly that reason. The regularisation is not a numerical hack imposed on the biology; the discontinuity was the unrealistic idealisation.

Two shapes cover almost every case. A linear ramp between two thresholds, as in rampHCR() above:

frac <- (x - x_lo) / (x_hi - x_lo)
switch_value <- min(1, max(0, frac))

or a logistic transition of relative width eps around a single threshold, when you would rather not invent a second reference point:

switch_value <- 1 / (1 + exp(-(x / x_0 - 1) / eps))

How wide should the transition be? Wide enough that the state takes several time steps to cross it. If the quantity driving the switch moves at rate \(v\), a transition of width \(\delta\) takes \(\delta / v\) years to traverse, so aim for \(\delta \gtrsim 10\, v \,\Delta t\). Choosing the width on those grounds makes it a modelling decision you can defend rather than a fudge factor: it says how precisely the switching quantity is really known, which for anything estimated from survey data is never to machine precision.

Then check that the answer does not depend on the choice. Halve dt and confirm the trajectory does not move; halve h and confirm getStability() does not move. Both checks are cheap, and both fail loudly on a discontinuity.

5.1 Kinks are much milder than jumps

A rate built with max(), min() or pmax() — the clamp in rampHCR(), or the starvation mortality \(\mu_s = \max(0,\, -E_r/w) \cdot c\) used by the mizerStarvation extension — is continuous but not differentiable. This is a far less serious problem than a jump. Such a rate cannot chatter, because there is no gap for the two branches to argue across, and positivity and the qualitative dynamics are safe. What it costs is accuracy at the steps that cross the kink, and machine-precision convergence in steadyNewton(), whose residual becomes merely Lipschitz. Mizer already lives with exactly this situation in its van Leer flux limiter, for the same reason and with the same consequence.

So the rule of thumb is: a kink is a mild accuracy tax, worth paying when the biology genuinely has a corner in it. A jump is a correctness problem, and is almost never what the biology actually says.

6 Checklist

If you have registered a custom rate function with setRateFunction() and something looks odd, work through this list.

None of this applies to rates that depend discontinuously on size or on time. A knife-edge selectivity is a discontinuous function of \(w\), and is handled by the spatial discretisation described in the numerical scheme vignette; a management measure that switches on in a given year is a discontinuous function of \(t\), and costs you accuracy only in the single step containing the switch. It is discontinuity in the state that causes the trouble described here, because only that feeds back on itself.
