Introduction

In this tutorial we will use the ggplot2 package and the
plotly package for R to visualise the results from mizer simulations.

library(mizer)
library(ggplot2)
library(plotly)

Mizer provides several functions for calculating summaries of the mizer simulation results, see ?summary_functions. Many of these functions have corresponding plotting functions, see ?plotting_functions. However it is easy to produce customised plots directly using ggplot() or plot_ly(). This gives more flexibility than the built-in plotting functions. Also, you will occasionally want to look at different quantities for which perhaps there is not built-in plotting function. In those cases the examples you see below will provide a useful blueprint.

Both ggplot2 and plotly works with data frames, and the convenient way to manipulate data frames is the dplyr package.

library(dplyr)

We create a simple simulation that we will use for our examples below.

params <- newMultispeciesParams(NS_species_params)
sim <- project(params, t_max = 10, t_save = 0.5, effort = 0)

From arrays to data frames

Mizer likes to work with arrays indexed by species and time or size. For example the built-in summary functions return such arrays. These arrays need to be converted to data frames before they can be conveniently plotted with either ggplot() or plot_ly. This conversion is achieved by the function melt().

For example, the function getBiomass() returns a two-dimensional array (matrix) with one dimension corresponding to the time and the second dimension to the species.

biomass <- getBiomass(sim)
str(biomass)
##  num [1:21, 1:12] 8.77e+07 2.52e+09 3.21e+09 7.50e+08 2.09e+08 ...
##  - attr(*, "dimnames")=List of 2
##   ..$ time: chr [1:21] "0" "0.5" "1" "1.5" ...
##   ..$ sp  : chr [1:12] "Sprat" "Sandeel" "N.pout" "Herring" ...

This array can be converted with the melt() function to a data frame that contains one row for each entry in the array.

biomass_frame <- melt(biomass)
str(biomass_frame)
## 'data.frame':    252 obs. of  3 variables:
##  $ time : num  0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 ...
##  $ sp   : Factor w/ 12 levels "Sprat","Sandeel",..: 1 1 1 1 1 1 1 1 1 1 ...
##  $ value: num  8.77e+07 2.52e+09 3.21e+09 7.50e+08 2.09e+08 ...

ggplot2 or plotly

In this form the information can be handed to plot_ly() and converted to a line plot:

pp <- plot_ly(biomass_frame) %>%
    add_lines(x = ~time, y = ~value, color = ~sp)
pp

We have specified that the time is plotted along the x axis, the value along the y axis and that the different species are represented by the colours of the lines. Note the American spelling “color” required by plotly.

Alternatively we can do the same thing with ggplot():

pg <- ggplot(biomass_frame) +
    geom_line(aes(x = time, y = value, colour = sp))
pg

Notice the different syntax for the ggplot2 and for plotly packages. The underlying ideas are similar: they are both implementations of the grammar of graphics. I recommend learning ggplot2 first, and switching to plotly only when it has clear advantages (in particular for animations, see below).

The main advantage of plotly, namely the interactivity of the resulting figures, can be obtained also with the ggplot syntax by running the result of ggplot() through the function ggplotly():

Below we will always for each plot first give the ggplot code and then the plotly code.

Adding labels

We may want to add labels to the figure and to each of the axes. In ggplot this is done with labs().

pg + labs(title = "Biomass plot",
          x = "Time [years]",
          y = "Biomass [g]")

In plotly we use the layout() function.

pp %>% layout(
    title = "Biomass plot",
    xaxis = list(
        title = "Time [years]"
    ),
    yaxis = list(
        title = "Biomass [g]"
    )
)

Filtering out data

We can use the filter function to filter out some of the data. For example we could select only the data for specific species:

two_species_biomass <- filter(biomass_frame, sp %in% c("Gurnard", "Herring"))

Now if we plot this reduced data frame we get

ggplot(two_species_biomass) +
    geom_line(aes(x = time, y = value, color = sp))

In the above we first converted the array to a data frame with melt() and then selected the data of interest with filter(). We could alternatively have first selected only the desired entries in the array and then created the data frame with melt() from the resulting smaller array:

nfr <- melt(getBiomass(sim)[, c("Gurnard", "Herring")])
ggplot(nfr) +
    geom_line(aes(x = time, y = value, color = sp))

The result looks almost identical, except that the colours associated to the species have changed.

Specifying line colours

If we want to make sure the same species always has the same colour, we can use the colours specified by the MizerParams object

getColours(params)
##      Sprat    Sandeel     N.pout    Herring        Dab    Whiting       Sole
##  "#815f00"  "#6237e2"  "#8da600"  "#de53ff"  "#0e4300"  "#430079"  "#6caa72"
##    Gurnard     Plaice    Haddock        Cod     Saithe      Total   Resource
##  "#ee0053"  "#007957"  "#b42979"  "#142300"  "#a08dfb"    "black"    "green"
## Background    Fishing
##     "grey"      "red"

To use these colours in ggplot we add scale_colour_manual():

ggplot(biomass_frame) +
    geom_line(aes(x = time, y = value, color = sp)) +
    scale_colour_manual(values = getColours(params))

In plotly we add colors = getColours(params)r to the add_lines() command:

plot_ly(biomass_frame) %>%
    add_lines(x = ~time, y = ~value, color = ~sp,
              colors = getColours(params))

Again note the American spelling “colors” required by plotly.

Plotting spectra

Of course mizer has the plotSpectra() function for plotting size spectra. Again it is instructional to create such plots by hand.

We can access the abundance spectra of the species via N(sim). This is a three-dimensional array (time x species x size). Let us first look at the abundance at the final time.

final_n <- N(sim)[idxFinalT(sim), , , drop = FALSE]

The drop = FALSE means that the result will again be a 3 dimensional array.

str(final_n)
##  num [1, 1:12, 1:100] 1.92e+06 4.81e+12 1.15e+14 3.86e+12 1.12e+11 ...
##  - attr(*, "dimnames")=List of 3
##   ..$ time: chr "10"
##   ..$ sp  : chr [1:12] "Sprat" "Sandeel" "N.pout" "Herring" ...
##   ..$ w   : chr [1:100] "0.001" "0.00119" "0.00142" "0.0017" ...

We use the melt() function to convert this array into a data frame.

nf <- melt(final_n)

This has created a data frame with 4 variables and one observation for each of the 1200 entries in the 1 x 12 x rdim(final_n)[3] matrix final_n.

str(nf)
## 'data.frame':    1200 obs. of  4 variables:
##  $ time : int  10 10 10 10 10 10 10 10 10 10 ...
##  $ sp   : Factor w/ 12 levels "Sprat","Sandeel",..: 1 2 3 4 5 6 7 8 9 10 ...
##  $ w    : num  0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 ...
##  $ value: num  1.92e+06 4.81e+12 1.15e+14 3.86e+12 1.12e+11 ...

The first three variables take their values from the dimension names of the array. Of course the time variable is the same for all observations, because we selected these before creating the data frame. The fourth variable called value is the value of the entry of the array, so the abundance density in our case.

There are a lot of entries with value 0, which we are not really interested in, so it makes sense to remove them:

nf <- filter(nf, value > 0)

This leaves a data frame with only 945 observations.

We can send this data frame to ggplot and add a line for the spectrum for each species, with a different colour for each, and specify that we want both the x axis and the y axis to be on a logarithmic scale.

pg <- ggplot(nf) +
    geom_line(aes(x = w, y = value, color = sp)) +
    scale_x_log10() +
    scale_y_log10()
pg

The corresponding syntax for plotly is

p <- plot_ly(nf) %>%
    add_lines(x = ~w, y = ~value, color = ~sp) %>%
    layout(xaxis = list(type = "log", exponentformat = "power"),
           yaxis = list(type = "log", exponentformat = "power"))
p

In the above we used the pipe operator %>% which feeds the return value of one function into the first argument of the next function.

Including resource spectrum

We can include additional lines in the plot by merging several data frames. For example, we can include another line for the resource spectrum. We first convert also the resource abundance at the final time into a data frame and filter out the zero values

nf_pp <- melt(NResource(sim)[idxFinalT(sim), , drop = FALSE]) %>%
    filter(value > 0)

This data frame only contains three variables, because it does not have the sp column specifying the species. We add this column with the value “Resource”

nf_pp$sp <- "Resource"

Now this new data frame has the same columns as the data frame nf and the two can be bound together

nf <- rbind(nf, nf_pp)

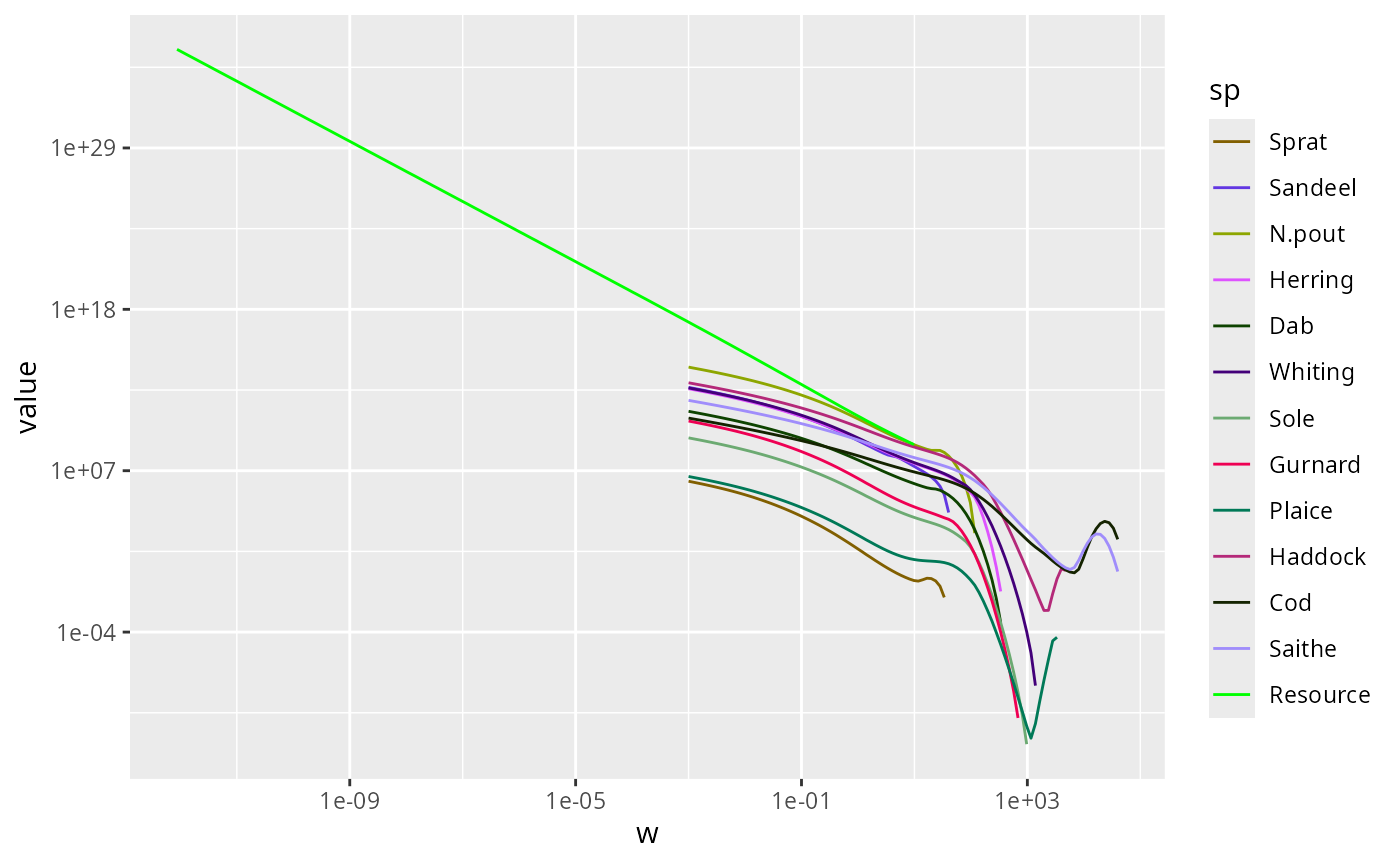

Using this extended data frame gives the following plot:

p <- ggplot(nf) +
    geom_line(aes(x = w, y = value, color = sp)) +
    scale_colour_manual(values = getColours(params)) +
    scale_x_log10() +
    scale_y_log10()
p

Of course we could use the same data frame also with plotly.

Limiting the axes

We might want to zoom in on the part that includes the fish. There are three ways to achieve this. The first is to use filter() to filter out all the rows in the data frame that have small w and then plot the resulting data frame as usual:

nf %>%
    filter(w > 10^-4) %>%
    ggplot() +
    geom_line(aes(x = w, y = value, color = sp)) +
    scale_colour_manual(values = getColours(params)) +
    scale_x_log10() +
    scale_y_log10()

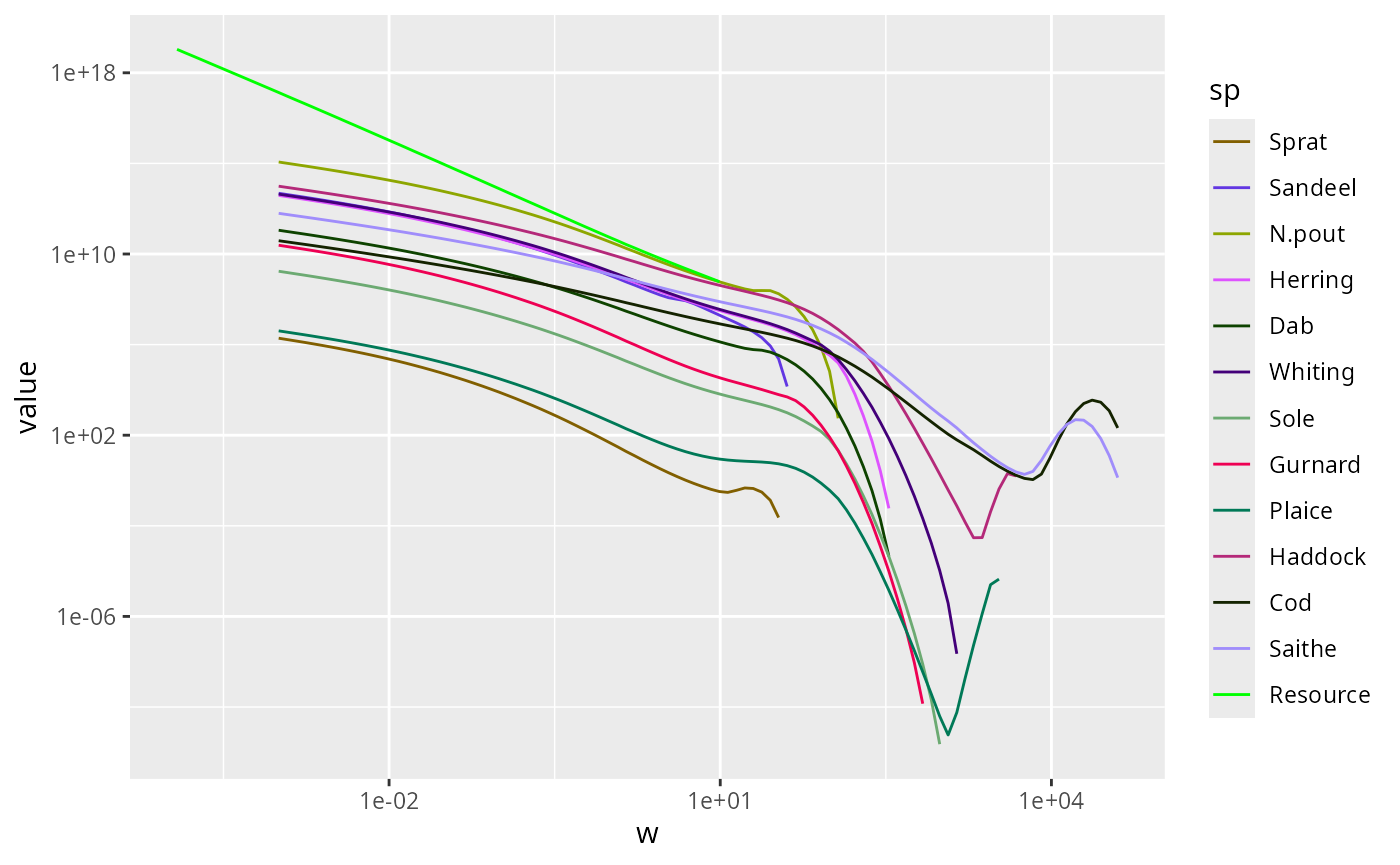

The second method is to specify limits for the axes. In ggplot this is done by adding limits to the axis scales:

ggplot(nf) +
    geom_line(aes(x = w, y = value, color = sp)) +
    scale_colour_manual(values = getColours(params)) +
    scale_x_log10(limits = c(10^-4, NA)) +
    scale_y_log10(limits = c(NA, 10^20))

The NA means that the existing limits are kept.

In plotly we specify the range as follows:

plot_ly(nf) %>%
    add_lines(x = ~w, y = ~value, color = ~sp,
              colours = getColours(params)) %>%
    layout(xaxis = list(type = "log", exponentformat = "power",
                        range = c(-4, 4)),
           yaxis = list(type = "log", exponentformat = "power",
                        range = c(-14, 20)))

Note how in plotly the range is specified by giving the logarithm to base 10 of the limits.

Animating spectra

Instead of picking out a specific time we can ask plotly to make an animation showing the changing spectra over time. So we melt the entire N(sim) array and use the time variable to specify the frames with the frame = ~time argument to add_lines():

melt(N(sim)) %>%
    filter(value > 0) %>%
    plot_ly() %>%
    add_lines(x = ~w, y = ~value,
              color = ~sp, colors = getColours(params),
              frame = ~time,
              line = list(simplify = FALSE)) %>%
    layout(xaxis = list(type = "log", exponentformat = "power"),
           yaxis = list(type = "log", exponentformat = "power"))

Note how this produces a smooth animation in spite of the fact that we saved the abundances only once a year. That interpolation is facilitated by the line = list(simplify = FALSE) argument.

The ggplot package does not provide a similarly convenient way of creating animations. There is the gganimate package, but it is not nearly as convenient.

Comparing simulations

We may also want to make plots contrasting the results of two different simulations, for example with different fishing policies. To illustrate this we create two simulations with different fishing effort:

sim1 <- project(params, t_max = 10, t_save = 0.2, effort = 2)
sim2 <- project(params, t_max = 10, t_save = 0.2, effort = 4)

Let us look at a plot of the fishing yield against time. This is calculated by the getYield() function, which returns an array (time x species) that we can convert to a data frame

yield1 <- melt(getYield(sim1))
yield2 <- melt(getYield(sim2))

Let’s look at the plot of the yield from the first simulation:

ggplot(yield1) +
    geom_line(aes(x = time, y = value, colour = sp))

To make the plot less cluttered, we keep only the 4 most important species

yield1 <- filter(yield1, sp %in% c("Saithe", "Cod", "Haddock", "N.pout"))
yield2 <- filter(yield2, sp %in% c("Saithe", "Cod", "Haddock", "N.pout"))

and plot again

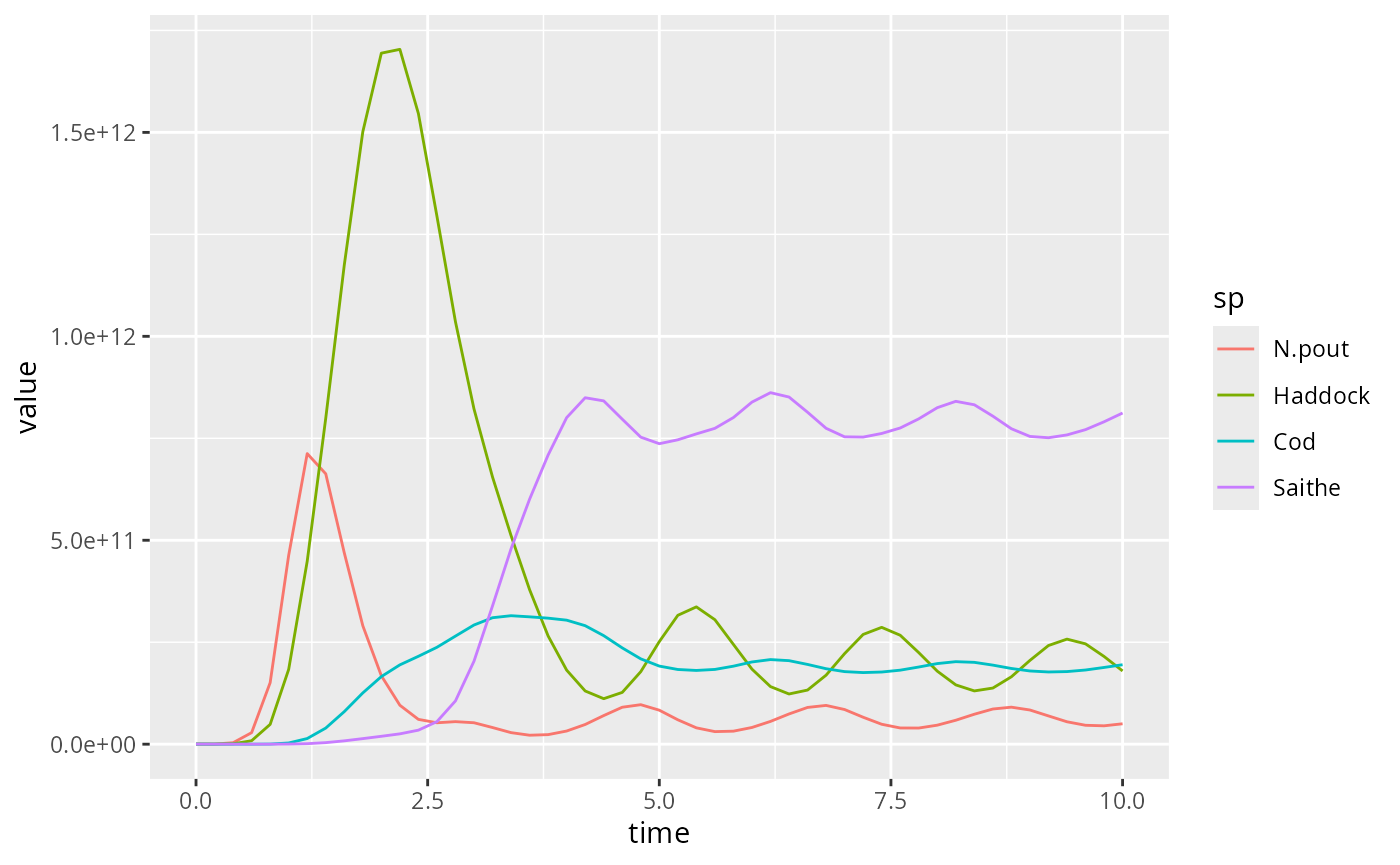

p1 <- ggplot(yield1) +
    geom_line(aes(x = time, y = value, colour = sp))
p1

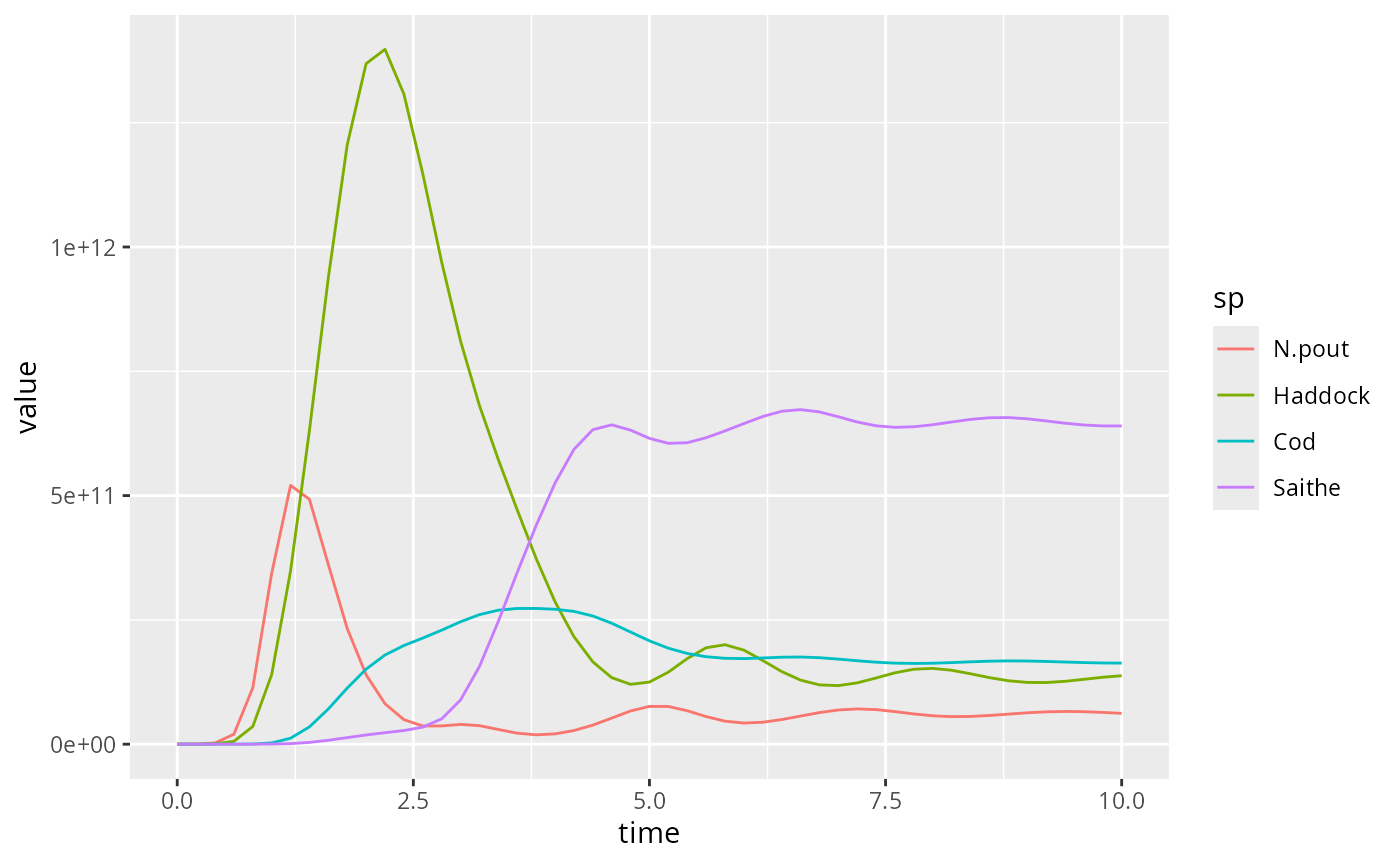

For simulation 2 the plot looks like this:

p2 <- ggplot(yield2) +
    geom_line(aes(x = time, y = value, colour = sp))
p2

Comparison will be easier if we combine these two plots. For that we add an extra variable to the data frames that allow us to distinguish them and then we merge them together.

yield1$effort = as.factor(2)
yield2$effort = as.factor(4)
yield = rbind(yield1, yield2)

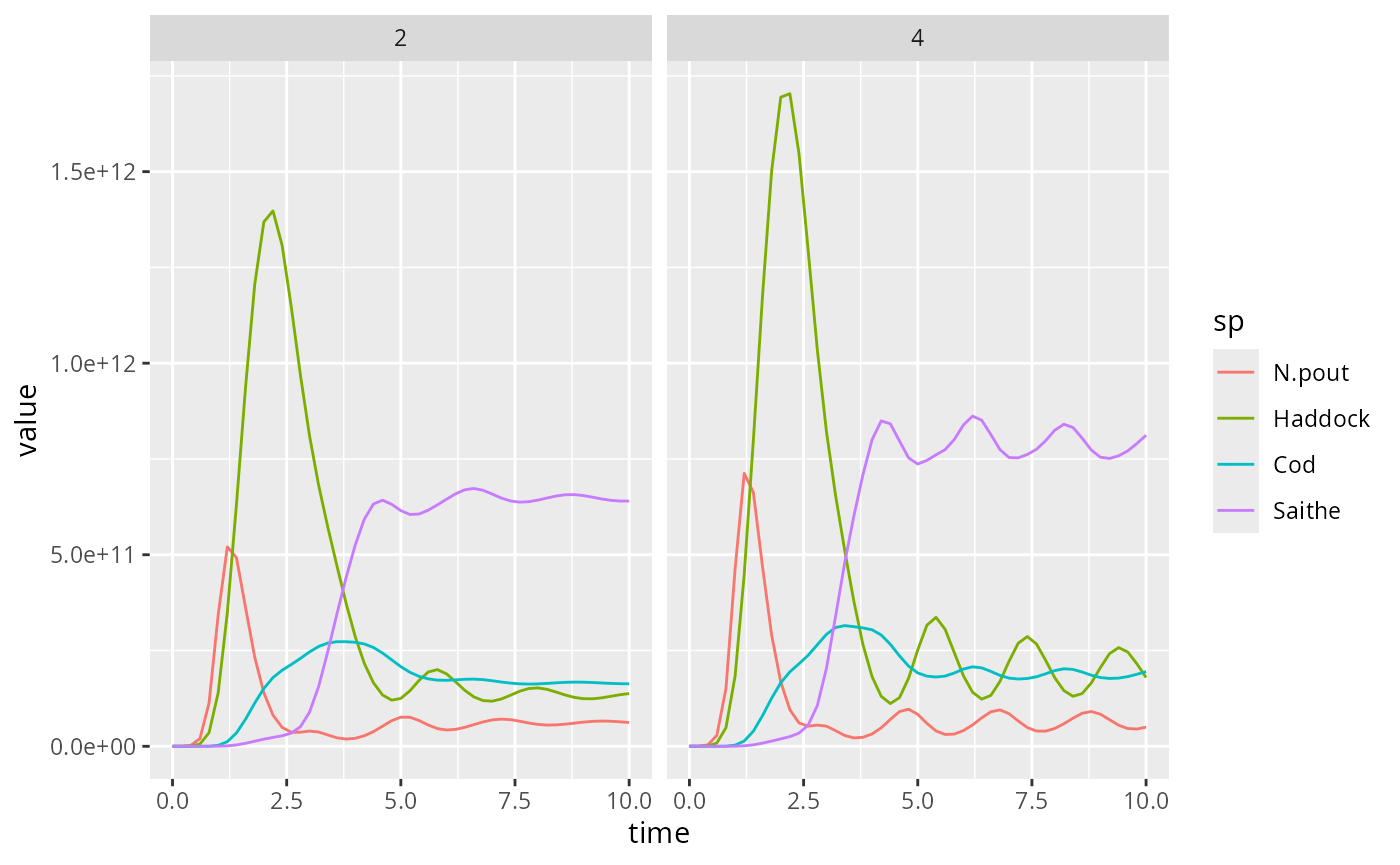

In ggplot we can now use facet_grid() to put the plot for each value of effort side-by-side:

ggplot(yield) +
    geom_line(aes(x = time, y = value,
                  colour = sp)) +
    facet_grid(cols = vars(effort))

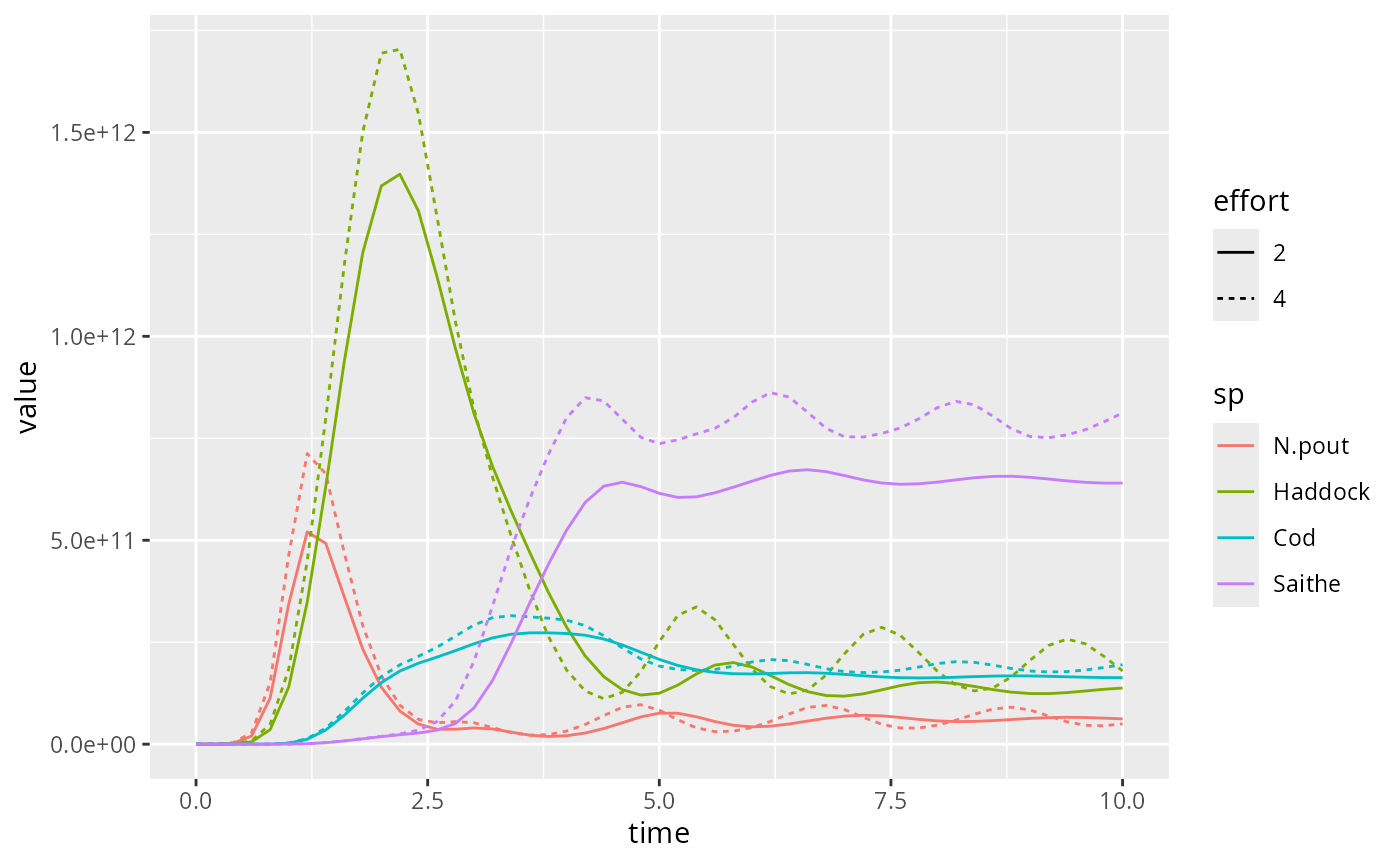

Or we can use the linetype aesthetic to represent the different effort values by different line types:

ggplot(yield) +
    geom_line(aes(x = time, y = value,
                  colour = sp,
                  linetype = effort))

An alternative is to use the interactive comparison widgets from the vdiffr package. For that purpose we need to create the two plots with the same limits on the axes.

p1 <- ggplot(yield1) +
    geom_line(aes(x = time, y = value, colour = sp)) +
    ylim(0,1.75e12)
p2 <- ggplot(yield2) +
    geom_line(aes(x = time, y = value, colour = sp)) +
    ylim(0,1.75e12)

We can then create a widget that allows the user to toggle between the two plots by clicking on it,

vdiffr::widget_toggle(p1, p2)

or by sliding across it:

vdiffr::widget_slide(p1, p2)

plotly is less good at faceting, but it can put arbitrary plots side-by-side (or arrange them into a grid) with subplot()

subplot(p1, p2, shareX = TRUE, shareY = TRUE)

Note how the shareY = TRUE argument to suplot() makes sure the two plots use the same scale on the y axis, and similarly for shareX = TRUE.

Also in plotly we can now tie the effort variable to the line type.

plot_ly(yield) %>%
    add_lines(x = ~time, y = ~value,
              color = ~sp, linetype = ~effort)

Arguably, ggplot2 does a nicer job in this case.
