How mizerShelf extends mizer

Overview

mizerShelf is an extension package for mizer that adds two extra ecosystem components to a standard multispecies size-spectrum model:

• detritus — particulate organic matter that settles to the seafloor and provides food for small benthic organisms and juvenile fish,
• carrion — fresh animal tissue from natural deaths, fishing gear mortality, and discards that is consumed by scavengers before decomposing into detritus.

Both components are dynamical: their biomasses change over time in response to species abundances and fishing effort. The package uses four of the five extension mechanisms described in vignette("extensions", package = "mizer"):

Extension mechanism	Used for
.onLoad + registerExtension()	Register the package with mizer so params objects know which extensions they need
setRateFunction()	Replace standard mortality with shelf mortality that includes excess gear mortality
Resource dynamics override	Implement detritus dynamics in place of the default semi-chemostat resource
setComponent()	Add carrion as a scalar dynamical component that contributes to the encounter rate
S4 subclassing + S3 dispatch	Define mizerShelf/mizerShelfSim marker classes for shelf-specific plotting, scaling, and species manipulation

All four mechanisms are wired together inside newDetritusCarrionParams(), which is the single entry point for building a shelf model.

The mizerShelf marker class

mizerShelf defines two S4 marker subclasses:

setClass("mizerShelf",    contains = "MizerParams")
setClass("mizerShelfSim", contains = "MizerSim")

These classes carry no extra slots. Their purpose is to trigger S3 dispatch so that shelf-specific behaviour is used automatically whenever a user calls a mizer generic on a mizerShelf object. The classes are marker classes in the sense described in vignette("extensions", package = "mizer").

Registration via .onLoad

For mizer to recognise mizerShelf as an extension, the package must register itself when it is loaded. This happens automatically via .onLoad in R/mizerShelf-package.R:

.onLoad <- function(libname, pkgname) {
    mizer::registerExtension(pkgname, requirement = "sizespectrum/mizerShelf")
}

registerExtension() adds an entry to mizer’s internal registry of known extensions. The requirement argument records the GitHub repository ("sizespectrum/mizerShelf") so that mizer can warn users if they load a params object that needs mizerShelf but the package is not installed.

This registration is what makes the subsequent call to getRegisteredExtensions() inside newDetritusCarrionParams() return "mizerShelf" — it is not a scan of installed packages but a lookup of packages that have explicitly announced themselves to mizer.

newDetritusCarrionParams() records the extension in params@extensions and coerces the result to the mizerShelf marker class:

params@extensions <- getRegisteredExtensions()
params <- coerceToExtensionClass(params)

Recording the extension in params@extensions is what allows mizer to automatically produce a mizerShelfSim whenever project() is called: mizer’s own MizerSim() constructor calls coerceToExtensionClass(), which reads params@extensions, sees mizerShelf, and coerces the new sim object to mizerShelfSim.

Methods dispatched on mizerShelf

The following S3 methods are dispatched on mizerShelf or mizerShelfSim:

Method	What it adds
getBiomass.mizerShelf()	Adds detritus and carrion biomasses to the species biomasses
getBiomass.mizerShelfSim()	Same, as a time series
steady.mizerShelf()	Calls tune_carrion_detritus() after convergence
scaleModel.mizerShelf()	Adjusts carrion encounter rates and external detritus input when rescaling abundances
removeSpecies.mizerShelf()	Updates the carrion encounter-rate matrix rho
addSpecies.mizerShelf()	Computes the initial rho_carrion for new species

Each of these methods calls NextMethod() so that it first runs the standard mizer behaviour and then makes only the shelf-specific adjustments.

Example: getBiomass

The standard getBiomass() returns only species biomasses. The shelf version appends the detritus and carrion biomasses:

getBiomass.mizerShelf <- function(object, ...) {
    params <- object
    b <- NextMethod()                               # standard species biomasses
    d_biomass <- sum(params@initial_n_pp *
                     params@dw_full * params@w_full) # integrate resource spectrum
    b <- c(b, Detritus = d_biomass)
    scalar_other <- Filter(
        function(x) is.numeric(x) && length(x) == 1,
        params@initial_n_other)
    if (length(scalar_other) > 0) b <- c(b, unlist(scalar_other))
    b
}

Because plotBiomass() calls getBiomass() internally, this single override makes biomass plots show detritus and carrion alongside fish species without any further changes.

getBiomass(NWMed_params)[1:3]
#>     Small DF worms Small DF crustacea           DF worms
#>          0.6514945          0.1603410          0.7829609

sim <- project(NWMed_params, t_max = 3, t_save = 0.5, progress_bar = FALSE)

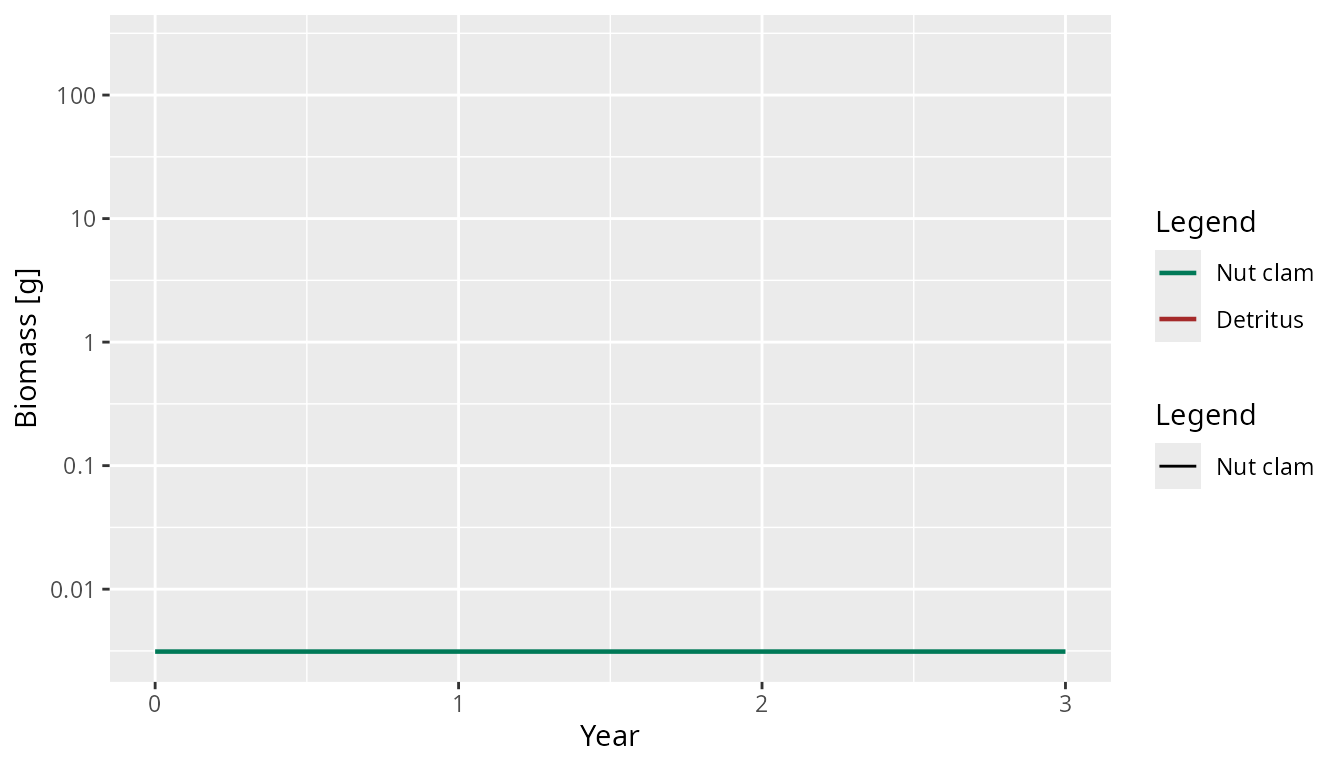

plotBiomass(sim, species = c("Nut clam", "Detritus"))
#> Warning: Removed 7 rows containing missing values or values outside the scale range
#> (`geom_line()`).

Detritus: overriding the resource dynamics

Mizer’s standard resource spectrum follows a semi-chemostat towards a carrying capacity. mizerShelf replaces this with detritus_dynamics(), which is registered via the resource_dynamics argument to newMultispeciesParams():

params <- newMultispeciesParams(
    species_params = species_params,
    resource_dynamics = "detritus_dynamics",
    ...
)

This is the lightest-weight way to change the resource because it reuses all of mizer’s resource infrastructure — the size grid, the resource abundance array n_pp, the resource_mort rate, and so on — while replacing only the update step.

The detritus ODE

The detritus spectrum is always held at a fixed power-law shape; only its overall biomass $B$ is dynamical. The biomass satisfies

$$\frac{dB}{dt} = \text{production} - \text{consumption} \cdot B + \text{external}$$

where:

• production comes from unassimilated food (faeces), decomposing carrion, and an external input from the pelagic zone (getDetritusProduction()),
• consumption is the total rate at which species feed on detritus (detritus_consumption()), proportional to the current biomass,
• external is a tunable constant that represents sedimentation from pelagic waters, stored in other_params(params)$detritus$external.

detritus_dynamics() solves this ODE analytically within each time step to avoid the instabilities of a simple Euler step:

$$B(t + \Delta t) = B(t)\,e^{-c\,\Delta t} + \frac{p}{c}\left(1 - e^{-c\,\Delta t}\right)$$

where $c$ is the mass-specific consumption rate and $p$ is the production rate. The shape of the spectrum is then scaled to the new biomass:

detritus_dynamics <- function(params, n, n_pp, n_other, rates, dt, ...) {
    current_biomass <- detritus_biomass(params, n_pp = n_pp)
    consumption     <- detritus_consumption(params, n_pp, rates) / current_biomass
    production      <- sum(getDetritusProduction(params, n, n_other, rates))
    if (consumption) {
        et           <- exp(-consumption * dt)
        next_biomass <- current_biomass * et + production / consumption * (1 - et)
    } else {
        next_biomass <- current_biomass + production * dt
    }
    n_pp * next_biomass / current_biomass
}

The function receives n_pp (the current resource spectrum), not the initial spectrum, so the update is applied to whatever state the simulation is currently in.

Steady-state tuning

tune_carrion_detritus() adjusts the external detritus input so that at the current abundances the detritus is at steady state (dB/dt = 0):

params@other_params$detritus$external <- outflow - production

This function is called automatically by steady.mizerShelf() after mizer’s own steady-state iteration converges.

User-facing controls

Two getter/setter pairs make it easy to calibrate the detritus:

• detritus_biomass(params) — total detritus biomass in grams.
• detritus_lifetime(params) — the expected time a unit of detritus survives before being consumed, equal to $B / (\text{consumption rate})$.
• detritus_lifetime(params) <- value — rescales detritus abundance while keeping total consumption unchanged (by adjusting interaction_resource).

detritus_lifetime(params)
#> [1] 1

Carrion: adding a new dynamical component

Carrion is not naturally represented by any existing mizer structure: it is a scalar total biomass (not size-structured), produced by mortality and consumed by scavengers with a species- and size-dependent encounter rate. It is registered as an other component via setComponent():

params <- setComponent(
    params, "carrion",
    initial_value  = 1,
    dynamics_fun   = "carrion_dynamics",
    encounter_fun  = "encounter_contribution",
    component_params = list(rho = rho))

The three arguments name the functions that mizer will call at each time step:

• dynamics_fun = "carrion_dynamics" — updates the carrion biomass.
• encounter_fun = "encounter_contribution" — adds the carrion’s contribution to each species’ encounter rate.
• component_params stores the rho matrix (species × size) and a decomposition rate in other_params(params)$carrion.

Encounter contribution

The contribution of carrion to the encounter rate of species $i$ at body size $w$ is

$$E_i^{\text{carrion}}(w) = \rho_i(w)\,B_{\text{carrion}}$$

where $\rho_i(w)$ is a species- and size-dependent encounter rate coefficient stored in the component parameters. The function encounter_contribution() is a generic helper that works for any scalar other-component:

encounter_contribution <- function(params, n_other, component, ...) {
    params@other_params[[component]]$rho * n_other[[component]]
}

The rho matrix is initialised in newDetritusCarrionParams() so that each species has enough food from all sources (fish prey, detritus, and carrion) to reach a feeding level of f0 at maximum body size.

Carrion dynamics

The carrion biomass $B$ satisfies the same ODE structure as the detritus:

$$\frac{dB}{dt} = \text{production} - \text{consumption} \cdot B$$

• production (getCarrionProduction()) comes from three sources:
  • a fraction ext_prop of natural (non-predation) mortality,
  • excess gear mortality (gearMort()), i.e. animals killed by the gear but not landed,
  • discards — landed animals that are thrown back.
• consumption (carrion_consumption_ms()) includes active consumption by fish scavenging carrion plus bacterial decomposition.

As with detritus, the ODE is solved analytically within each time step:

carrion_dynamics <- function(params, n, n_other, rates, dt, ...) {
    consumption <- carrion_consumption_ms(params, n, rates)
    production  <- sum(getCarrionProduction(params, n, rates))
    if (consumption) {
        et <- exp(-consumption * dt)
        return(n_other$carrion * et + production / consumption * (1 - et))
    }
    return(n_other$carrion + production * dt)
}

Production and consumption breakdown

The package provides functions to inspect where carrion comes from and where it goes:

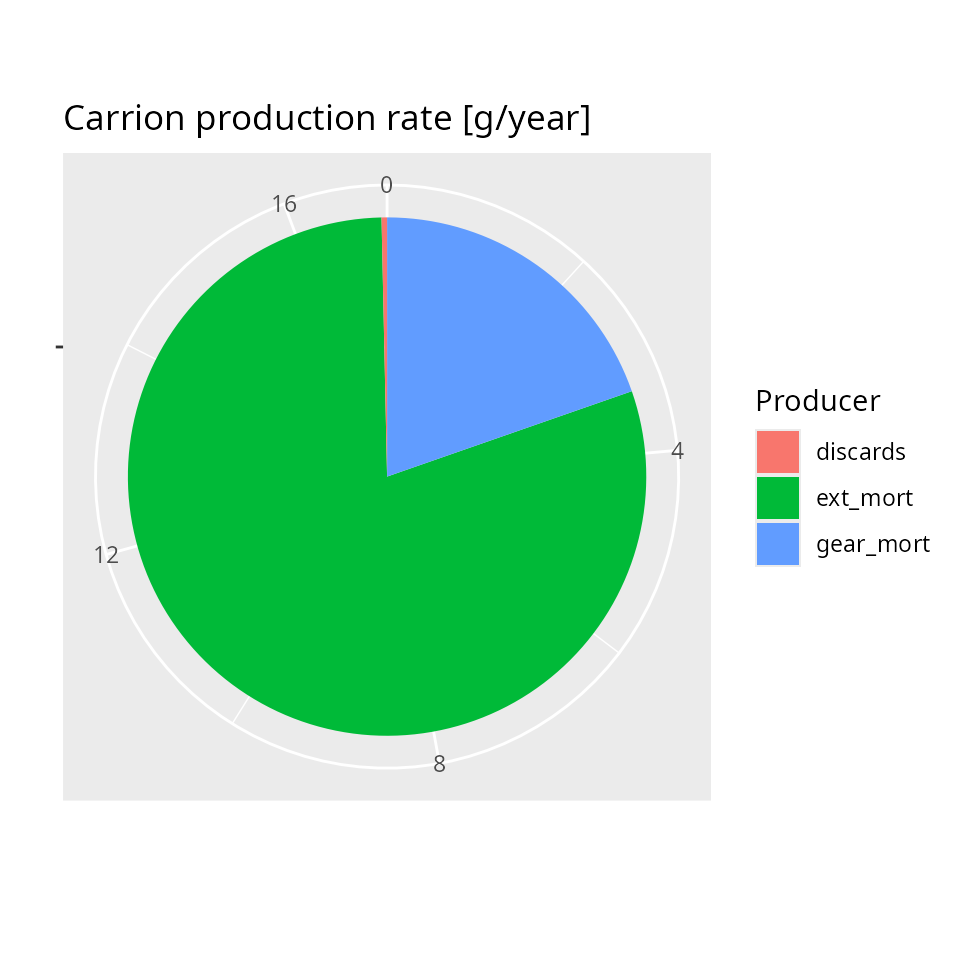

plotCarrionProduction(params)

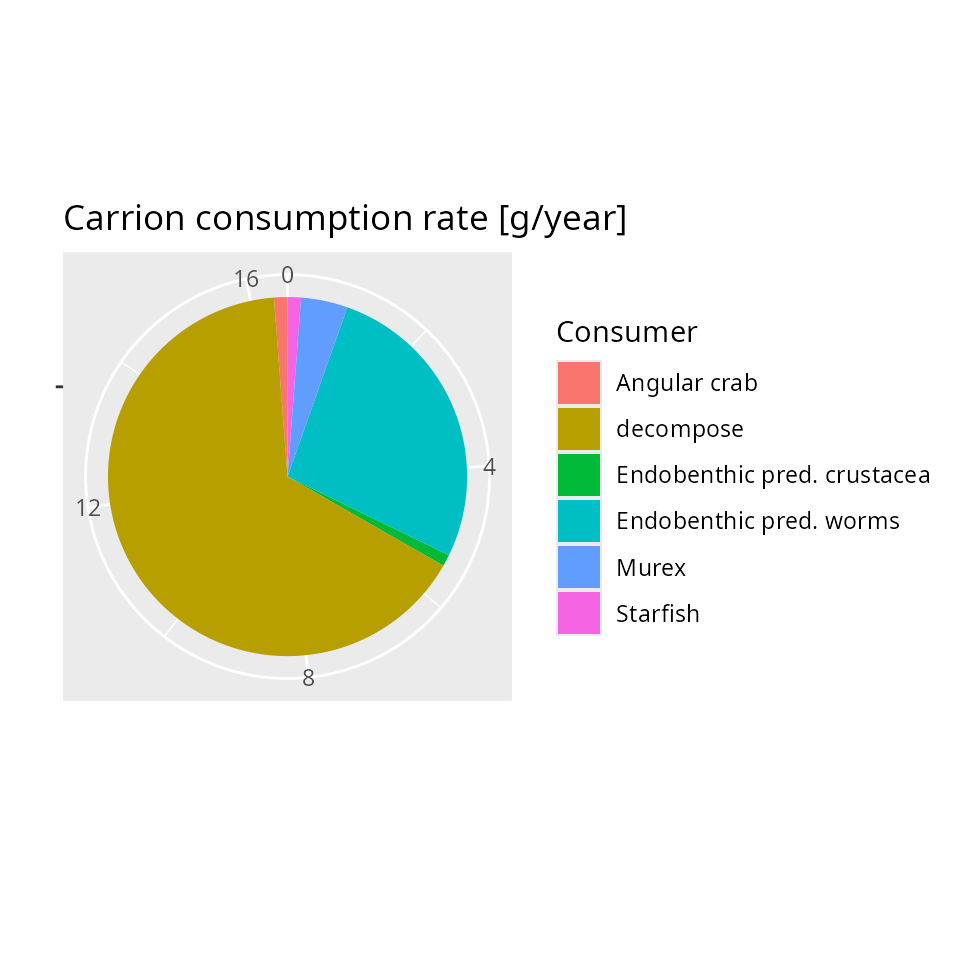

plotCarrionConsumption(params)

User-facing controls

• carrion_lifetime(params) — expected lifespan of carrion in years.
• carrion_lifetime(params) <- value — rescales the carrion biomass and its encounter-rate coefficients while keeping total consumption unchanged.
• carrion_human_origin(params) — fraction of carrion production that comes from fishing (gear mortality + discards).
• carrion_human_origin(params) <- value — adjusts ext_prop (the fraction of natural mortality that produces carrion) to hit the target.

carrion_lifetime(params)
#> [1] 0.002739726
carrion_human_origin(params)
#> [1] 0.2

The custom mortality rate

Standard mizer fishing mortality accounts only for fish that are extracted from the water. Continental shelf fisheries also kill animals that remain on the seabed after contact with bottom-trawl gear. mizerShelf captures this distinction with a custom mortality function registered via setRateFunction():

params <- setRateFunction(params, "Mort", "seMort")

seMort() calls the standard mizerMort() and adds the excess gear mortality on top:

seMort <- function(params, n, n_pp, n_other, t, f_mort, pred_mort, ...) {
    mizerMort(params, n, n_pp, n_other, t, f_mort, pred_mort, ...) +
        gearMort(params, f_mort = f_mort)
}

gearMort() returns max(gear_mort - f_mort, 0), where gear_mort is a species parameter giving the total rate at which animals die due to gear contact. When fishing mortality is below this cap, the remainder enters total mortality and also enters the carrion production (via getCarrionProduction()). When fishing mortality exceeds gear_mort, excess gear mortality is zero.

The custom rate function receives and returns exactly the same array shape as mizerMort() (species × size), so it is a drop-in replacement that adds one ecological process without changing anything else.

How the pieces fit together in newDetritusCarrionParams()

All four extension mechanisms are wired up inside a single constructor:

newDetritusCarrionParams <- function(species_params,
                                     w_min_detritus = NA,
                                     w_max_detritus = 1,
                                     n = 0.7, ...) {
    # 1. Detritus: override resource dynamics
    params <- newMultispeciesParams(
        species_params   = species_params,
        min_w_pp         = w_min_detritus,
        w_pp_cutoff      = w_max_detritus,
        n = n, p = n,
        resource_dynamics = "detritus_dynamics",
        ...)

    # Initialise rho so each species can reach feeding level f0 at max size
    f0  <- set_species_param_default(params@species_params, "f0", 0.6)$f0
    ic  <- set_species_param_default(
               params@species_params, "interaction_carrion", 1)$interaction_carrion
    E   <- getEncounter(params)[, length(params@w)] /
               (params@w[length(params@w)] ^ n)
    rho <- pmax(0, f0 * params@species_params$h / (1 - f0) - E) * ic
    params@species_params$rho_carrion <- rho
    rho <- outer(params@species_params$rho_carrion, params@w ^ n)

    # 2. Mortality: custom rate function adds excess gear mortality
    params <- setRateFunction(params, "Mort", "seMort")

    # 3. Carrion: scalar dynamical component
    params <- setComponent(
        params, "carrion", initial_value = 1,
        dynamics_fun     = "carrion_dynamics",
        encounter_fun    = "encounter_contribution",
        component_params = list(rho = rho))

    # 4. Marker class: enables S3 dispatch for shelf-specific methods
    params <- setColours(params,
                         c(Detritus = "forestgreen", carrion = "peru"))

    params@extensions <- getRegisteredExtensions()
    params <- coerceToExtensionClass(params)
}

The order matters. The resource dynamics are set inside newMultispeciesParams() before mizer computes initial rates, so the detritus shape is consistent from the start. The carrion component is registered after the species parameters are set, so that rho can be computed from the initial encounter rates. The marker class is applied last, after all the standard mizer slots have been populated.

Summary

mizerShelf illustrates all four of the core mizer extension mechanisms working together:

1. Resource dynamics override — detritus reuses mizer’s resource spectrum infrastructure with a custom ODE that tracks total biomass and rescales the spectrum shape.

2. setRateFunction() — the custom seMort() adds excess gear mortality to the standard mortality calculation with a single-line wrapper around mizerMort().

3. setComponent() — carrion is a scalar dynamical variable whose biomass evolves each time step and whose encounter-rate contribution is automatically included in getEncounter() and getDiet().

4. S4 marker classes + S3 dispatch — mizerShelf and mizerShelfSim ensure that shelf-specific methods (getBiomass, steady, scaleModel, addSpecies, removeSpecies) are dispatched automatically, while every override delegates to NextMethod() so that the full mizer pipeline remains intact.

Together, these mechanisms allow mizerShelf to add two ecologically important processes — benthic detritus and carrion scavenging — to any mizer model without modifying the mizer source code.
